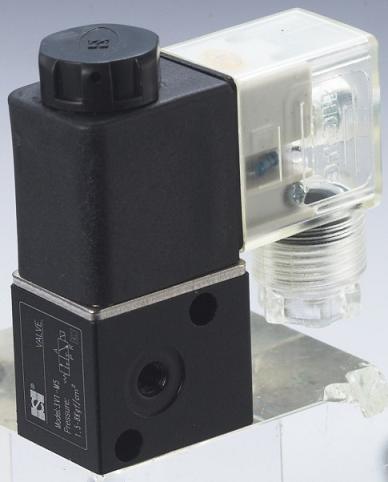

3v1-06 Solenoid Valve
3v1-06 Solenoid Valve, 3V1-06Item Code / Model Number:
3V1-06
3v1-06 Solenoid Valve
3V1-06 solenoid valve
Specifications are as below:
1.Fluid: Air
2.Action type: Direct action
3.Ambient temp: -10~60º C
4.Fluid temp: 5~60º C
5.Port: 1.0mm
6.Lubrication: No need
7.Working pressure: 0~0.8MPa
8.Proof pressure: 1.2MPa
9.Power consumption: AC: 4.5VA DC: 3.0W
10.Protection: IP65
11.Miring form: Lead or box
12.Body material: Aluminum alloy
13.Frequency: 10/s
14.Insulation: Class F
15.Response time: 50ms.
Specifications are as below:
1.Fluid: Air
2.Action type: Direct action
3.Ambient temp: -10~60º C
4.Fluid temp: 5~60º C
5.Port: 1.0mm
6.Lubrication: No need
7.Working pressure: 0~0.8MPa
8.Proof pressure: 1.2MPa
9.Power consumption: AC: 4.5VA DC: 3.0W
10.Protection: IP65
11.Miring form: Lead or box
12.Body material: Aluminum alloy
13.Frequency: 10/s
14.Insulation: Class F
15.Response time: 50ms.
- Place of Origin:
- China
- Brand:
- Heye
- Price Terms:
- FOB Shanghai Or Ningbo
- Packing:
- separately packed in small box, then several pieces in one carton.
- Payment Terms:
- T/T
- Delivery Time:
- 7~15 days
- Min Order Quantity:
- 10 pcs
- Standard / Certificates:
- ISO9001:2000
- Keywords:
- 3v1-06 solenoid valve, solenoid valve, valve
