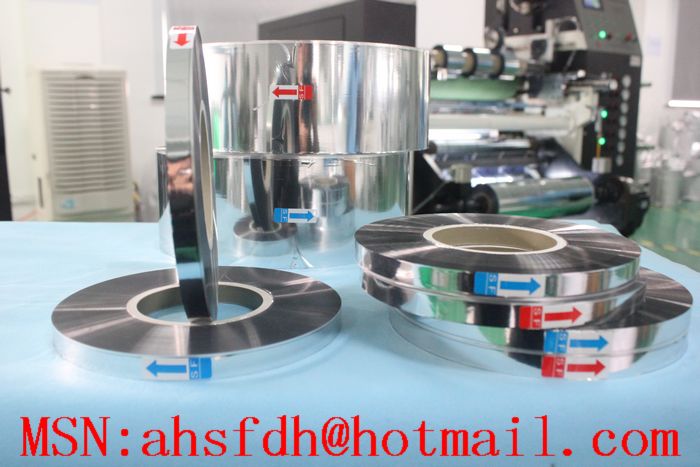

3 To 12 Micron Metallized Bopp Film For Capacitor
3 To 12 Micron Metallized Bopp Film For CapacitorItem Code / Model Number:
3 To 12 Micron Metallized Bopp Film For Capacitor
Al-Zn metalized polypropylene film( for capacitor using)
Polypropylene Film for Type M-PP/S-PP (3--12micron )By adopting the imported super high-purity capacitor-grade home-polypropylene resin, the film is made by biaxial-orientation tenter process.The film features excellent profile evenness, high BDV and high mechanical strength. The winded capacitors take on the characteristics of low dielectric dissipation and high insulation resistance.Application scopeM-PP:Mainly for metallized-film capacitor.S-PP:Mainly for foil-film capacitor.Capacitor Polypropylene Rough Film Type RPP/RRPP (6um --18um)Film thickness codeThe nominal film thickness is indicated by its central value (integer value, e.g. 5,6.7 the first figure after decimal or its codes. The nominal film thickness of this company is the Mechani-cal Method Value (MMV) under 10 layers testing.
packing:
1.Each package has equal numbers of left-hand and right-hand reels and direction is marked on the
closing sticker. The metallized face is wound inside unless a special agreement is reached.
2.Each reel is separated by plastic foam to protect the reel faces against damage. The piled pairs of
reels are put in plastic bags with drying agent or packed with vacuum method and then packed into
cartons. Several cartons are packed together in strong boxes according to shipment requirement.
1) Thickness: 4micron-12micron
2) Standard width: 37.5mm, 50mm, 62.5mm, 100mm and so on
3) Free margin: 1.5mm, 2mm, 2.5mm
4) Winding core: 75.5--76.2MM
5) Outside diameter: 200mm-330mm
Polypropylene Film for Type M-PP/S-PP (3--12micron )By adopting the imported super high-purity capacitor-grade home-polypropylene resin, the film is made by biaxial-orientation tenter process.The film features excellent profile evenness, high BDV and high mechanical strength. The winded capacitors take on the characteristics of low dielectric dissipation and high insulation resistance.Application scopeM-PP:Mainly for metallized-film capacitor.S-PP:Mainly for foil-film capacitor.Capacitor Polypropylene Rough Film Type RPP/RRPP (6um --18um)Film thickness codeThe nominal film thickness is indicated by its central value (integer value, e.g. 5,6.7 the first figure after decimal or its codes. The nominal film thickness of this company is the Mechani-cal Method Value (MMV) under 10 layers testing.
packing:
1.Each package has equal numbers of left-hand and right-hand reels and direction is marked on the
closing sticker. The metallized face is wound inside unless a special agreement is reached.
2.Each reel is separated by plastic foam to protect the reel faces against damage. The piled pairs of
reels are put in plastic bags with drying agent or packed with vacuum method and then packed into
cartons. Several cartons are packed together in strong boxes according to shipment requirement.
1) Thickness: 4micron-12micron
2) Standard width: 37.5mm, 50mm, 62.5mm, 100mm and so on
3) Free margin: 1.5mm, 2mm, 2.5mm
4) Winding core: 75.5--76.2MM
5) Outside diameter: 200mm-330mm
- Place of Origin:
- China
- Brand:
- Csf
- Unit Price:
- USD 4 to 12
- Price Terms:
- FOB Shanghai
- Other Price Terms:
- CFR,CIF
- Packing:
- 35kg to 45kg in one carton in pallet
- Payment Terms:
- L/C;T/T;M/T
- Payment Remarks:
- Western Union
- Delivery Time:
- 20 days
- Min Order Quantity:
- 1000 kg
- Standard / Certificates:
- ISO9001,Rohs,CE,UL,TUV,VDE
- Keywords:
- metallized film, metallized bopp film, capacitor metallized film
