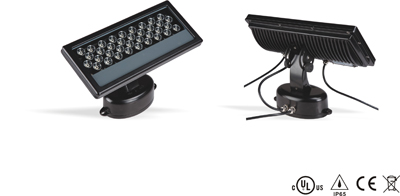

Led Wall Washer-1-36p
Led Wall Washer-1-36pItem Code / Model Number:
Led Wall Washer-1-36p
A:Structure and Specification:
Size:L343*W152*H214mm
Material of Shell: aluminum alloy
Weight:3.9kgs ± 5%
Rotary angle: 180°
B:Technical Parameters
Input Voltage : 100V~256V AC
Operating Voltage : 12V DC/24V DC
Protection Rating : IP65
Operating Temperature : -40°C ~60°C
ITEM NO. LED Quantity Color Current Power Consumption Beam Angel Project distance
LWW-1-180 180LED R-60, G-60, B-60 0.06A(Max.) 15Watts 45° 15M
LWW-1-360 360LED R-120, G-120, B-120 0.11A(Max.) 25Watts 45° 15M
LWW-1-36P 36 OWER LED R-12, G-12, B-12 0.22A(Max.) 48Watts 25° 20
Size:L343*W152*H214mm
Material of Shell: aluminum alloy
Weight:3.9kgs ± 5%
Rotary angle: 180°
B:Technical Parameters
Input Voltage : 100V~256V AC
Operating Voltage : 12V DC/24V DC
Protection Rating : IP65
Operating Temperature : -40°C ~60°C
ITEM NO. LED Quantity Color Current Power Consumption Beam Angel Project distance
LWW-1-180 180LED R-60, G-60, B-60 0.06A(Max.) 15Watts 45° 15M
LWW-1-360 360LED R-120, G-120, B-120 0.11A(Max.) 25Watts 45° 15M
LWW-1-36P 36 OWER LED R-12, G-12, B-12 0.22A(Max.) 48Watts 25° 20
- Place of Origin:
- China
- Payment Terms:
- T/T
- Keywords:
- led wall washer, led light, light
