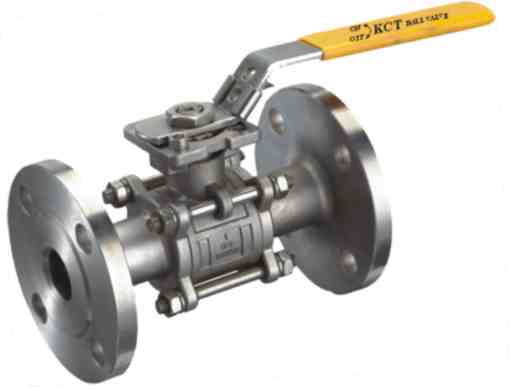

Stainless Steel 3pcs Ball Valve
Stainless Steel 3pcs Ball ValveItem Code / Model Number:
Stainless Steel 3pcs Ball Valve
Construction and features: Fire safety, Anti-static device, Stem anti-blow-out device.
Normal diameter or bore: NPS 1"~NPS 10", DN25~DN250, 25A~250A.
Normal pressure or rating: Class 150~Class 2500, JIS 10K~20K, PN 10~PN 160.
Material: A105, A182 F316, F304, F316L, F304L, F11, A350 LF2.
Design & manufacture: API 6D, API 608, ASME B16.34, ANSI/AWWA C507, MSS SP-72, BS 5351(EN ISO17292), BS 6364, BFCI 70-2, ISO 5211, NACE MR0175.
Face to face dimension: ASME B16.10, ISO 5752, BS EN 558, BS 12982, JIS B 2002.
Connection ends: ASME B16.5, JIS B2220, ISO 7005-1, BS 12627, BS EN 1092, ASME B16.25, ASME B16.11.
Testing & inspection: API 598, API 6D, API 607, API 6FA, BS 6755, BS 12569, MSS SP-61, ISO 5208.
Operation type: Manual, Worm gear, Pneumatic, Electric.
Applicable temperature: -196oC~540oC.
Normal diameter or bore: NPS 1"~NPS 10", DN25~DN250, 25A~250A.
Normal pressure or rating: Class 150~Class 2500, JIS 10K~20K, PN 10~PN 160.
Material: A105, A182 F316, F304, F316L, F304L, F11, A350 LF2.
Design & manufacture: API 6D, API 608, ASME B16.34, ANSI/AWWA C507, MSS SP-72, BS 5351(EN ISO17292), BS 6364, BFCI 70-2, ISO 5211, NACE MR0175.
Face to face dimension: ASME B16.10, ISO 5752, BS EN 558, BS 12982, JIS B 2002.
Connection ends: ASME B16.5, JIS B2220, ISO 7005-1, BS 12627, BS EN 1092, ASME B16.25, ASME B16.11.
Testing & inspection: API 598, API 6D, API 607, API 6FA, BS 6755, BS 12569, MSS SP-61, ISO 5208.
Operation type: Manual, Worm gear, Pneumatic, Electric.
Applicable temperature: -196oC~540oC.
- Place of Origin:
- China
- Packing:
- STAINLESS STEEL FLANGED BALL VALVE
- Payment Terms:
- L/C;D/A;T/T;Cash
- Min Order Quantity:
- 1pc
- Keywords:
- stainless steel, 3pcs ball valve, flanged
