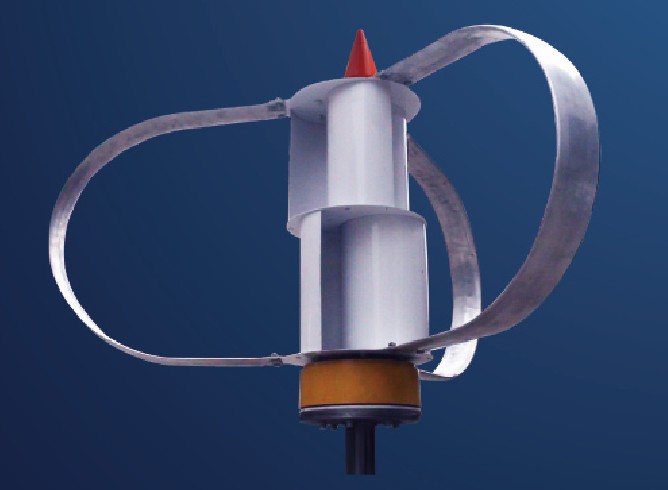

Vertical Axis Wind Turbine
Vertical Axis Wind TurbineContinuous Selling Item
Vertical Axis Wind Turbine
Parameter
Brand Guangmang
Max. output(W) 300
Rated voltage(V) 12/24
Rated current(A) 25/12.5
Rotating diameter(mm) 1200
Rotor height(mm)
620
Start-up wind speed(m/s) 2.5
Security wind speed(m/s) 65
Blade quantity(pcs) 3
Blade material aluminium
Protection mode Over-charge protection
Control mode Built-in
Generator type Permanent magnet
Class of insulation F
Protection grade IP54
Operating temperature -20℃~60℃
Life time(year) 15-20
Net weight(kgs) 20
Packing form carton(filled with foam)
Generator packing(mm) 980*800*420MM
Blades packing(mm) 600*550*100MM
Gross weight(kgs) 25
Brand Guangmang
Max. output(W) 300
Rated voltage(V) 12/24
Rated current(A) 25/12.5
Rotating diameter(mm) 1200
Rotor height(mm)
620
Start-up wind speed(m/s) 2.5
Security wind speed(m/s) 65
Blade quantity(pcs) 3
Blade material aluminium
Protection mode Over-charge protection
Control mode Built-in
Generator type Permanent magnet
Class of insulation F
Protection grade IP54
Operating temperature -20℃~60℃
Life time(year) 15-20
Net weight(kgs) 20
Packing form carton(filled with foam)
Generator packing(mm) 980*800*420MM
Blades packing(mm) 600*550*100MM
Gross weight(kgs) 25
- Place of Origin:
- China
- Brand:
- Guangmang
- Packing:
- plywood case
- Payment Terms:
- L/C;T/T
- Delivery Time:
- 7-10
- Min Order Quantity:
- 1pc
- Standard / Certificates:
- CE and ISO9001
