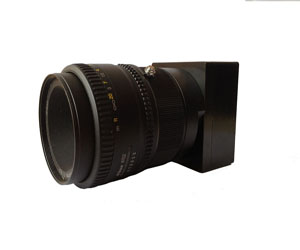

Industrial Inspection Camera/ Ccd Camera Key-l2000
Industrial Inspection Camera/ Ccd Camera Key-l2000Continuous Selling Item
Industrial Inspection Camera/ Ccd Camera Key-l2000
The L2000 Color cameras is designed for industral application with high fidelity color, high resolutions, wide dynamic range, high sensitivity, high speed, electronic exposure control.
The camera can be triggered via an external sync signal or run in an internally controlled "free-run" mode.
The camera has high sensitive and wide dynamic range triline CCD color image sensors.
With a single power supply and Camera Link interface, the camera is both easy to use and powerful, offering programmable gains and offsets for each color.
Specifications L2000
Sensor Size 2098×3 line
Sensor Type Linear color triline CCD
Pixel Size 14 µm by 14 µm
Pixel Speed(MHz) 20
Max. Line Rate(KHz) >9.2
Video Output Formats RGB-24bit
Synchronization Via external trigger or free-run
Exposure Control Models Programmable
Power Requirements
max. mW 15 VDC (±10%)
350
Lens Mounts F mount/PK mount
Housing Size(L×W×H) 56mm×66mm×33.8mm
The camera can be triggered via an external sync signal or run in an internally controlled "free-run" mode.
The camera has high sensitive and wide dynamic range triline CCD color image sensors.
With a single power supply and Camera Link interface, the camera is both easy to use and powerful, offering programmable gains and offsets for each color.
Specifications L2000
Sensor Size 2098×3 line
Sensor Type Linear color triline CCD
Pixel Size 14 µm by 14 µm
Pixel Speed(MHz) 20
Max. Line Rate(KHz) >9.2
Video Output Formats RGB-24bit
Synchronization Via external trigger or free-run
Exposure Control Models Programmable
Power Requirements
max. mW 15 VDC (±10%)
350
Lens Mounts F mount/PK mount
Housing Size(L×W×H) 56mm×66mm×33.8mm
- Place of Origin:
- China
- Brand:
- Key
- Unit Price:
- USD 1000
- Port:
- FOB Shanghai
- Payment Terms:
- L/C;T/T
- Min Order Quantity:
- 11pcs
