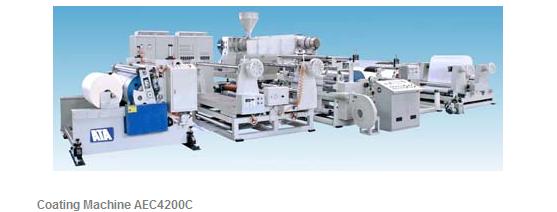

Coating Machine

The parameters
Model:AEC4200C
Coating Width:3600-4100mm
Coating Thickness:0.02-0.08mm
Running speed:100m/min
Main technical characteristics:
ATA Coating&Laminating Machine Model AEC4200D for the production of coating the melting PP or PE on paper,weaving fabric ,or laminating the paper ,with weaving fabric.
Laminating width:3600-4100mm(500-800 folded bags)
Laminating thickness:0.02-0.08mm ±0.05mm
Extruder: φ130*33
Working speed:10-60m/min
Mechanical speed:20-100m/min
Length of roller:4200mm
Width of T-die:4250mm
Max.Diameter.of winding & unwinding web:Max. φ1000mm
Core of winding &unwinding&unwinding web: φ4300*205(inner)* φ219(outer)
Rated power:350kw
Compressed air :1.2m3/min
Cooling water:0.8m3/min
Dimension:14*18*4.5m
Weight:46ton
