Pure Sine Wave Inverter With Ups

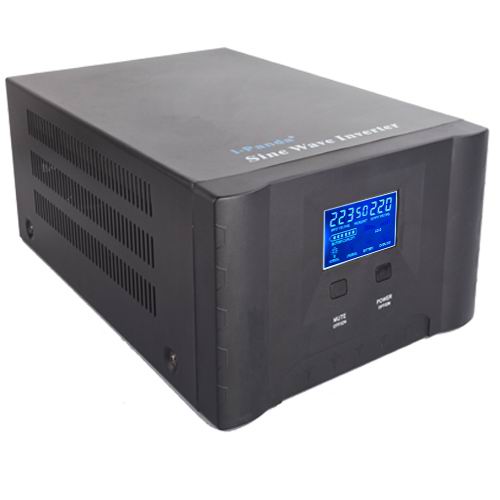

I-P-XD-500VA Industrial Pure Sine Wave Inverter (UPS)

Digital Control Technology--LCD Display
Low Frequency Pure Sine Wave Inverter - Single-phase

Function:
1, Auto Voltage Regulation(AVR):
2, DC/AC Conversion Function:
3, Intelligent Charging Function:
4.UPS Function:

Features：
1, Pure sine wave AC output;
2, Intelligent program control, CPU management;
3, With LCD display, users can know operation status of the whole system clearly;
4, With multi-functions, extra charger is not needed and electric appliances can be protected (AVR, UPS);
5, Wide applicable scope, can be wide used for all kinds of occasions, such as outdoor area without electricity, industrial area, household, office, supermarket, hospital, bank, solar system, wind energy systems etc;
6, With external battery connection, it’s convenient for users to expand use time and back-up power time;
7, With super load carrying ability and high load capacity, this inverter can not only carry resistance load; but also can carry various kinds of inductive loads, such as motor, air conditioner, electric drills, fluorescent lamp, gas lamp, etc;
8, With high quality, low frequency circuit design, stable system, low failure rate and long service life，normally under proper operation, this machine can last more than 3 years;
9, Perfect protection function: low voltage protection, over voltage protection, high temperature protection, short circuit protection, overloads protection;
10, Approvals: CE / EMC / LVD/ RoHS ;
11, Two years warranty, lifelong technical supports;

Technical Specification:
I-P-XD-500VA
Rated output capacity 350W
Peak power 700W
Battery voltage(DC) 12V or 24V（Optional）
AC Input Voltage(AC) 220V±35% or 110V+35%(Optional)
Frequency 50Hz±3% or 60Hz±3%
Output(AC) Voltage 220V±3% or 230V±3 or
240V±3% or 100V±3%
or 110V±3% (Optional)
Frequency 50Hz±0.5 or 60Hz±0.5(Optional)
Charge Battery Charge circuit 0~15A
Charge time By the capacity of battery
Battery protection Automatic self-test. charge and discharge protection
Display Mode LCD
Information Input voltage,
Output voltage, Frequency,
Battery capacity,
Load capacity
State parameters
Output wave type Pure sine wave (Waveform distortion≤3)
Overload capacity 120% 60s,130% 10s，
Inverter efficiency Average 90%
Transfer time ≤ 5ms
Protection function Output overload protection,
Output short-circuit protection, Battery reverse polarity protection, Input high-voltage protection , Input low-voltage protections,
Overheat protection;
Using environment Temperature -10℃～60℃
Humidity 10%～90%,Non-condensing
Altitude ≤4000m
Size W×D×H(mm) 315*210*120
Packing size W×D×H(mm) 385*270*185
Net weight (kg) 7
Gross weight (kg) 8
Welcome to your inquiry of inverter.
