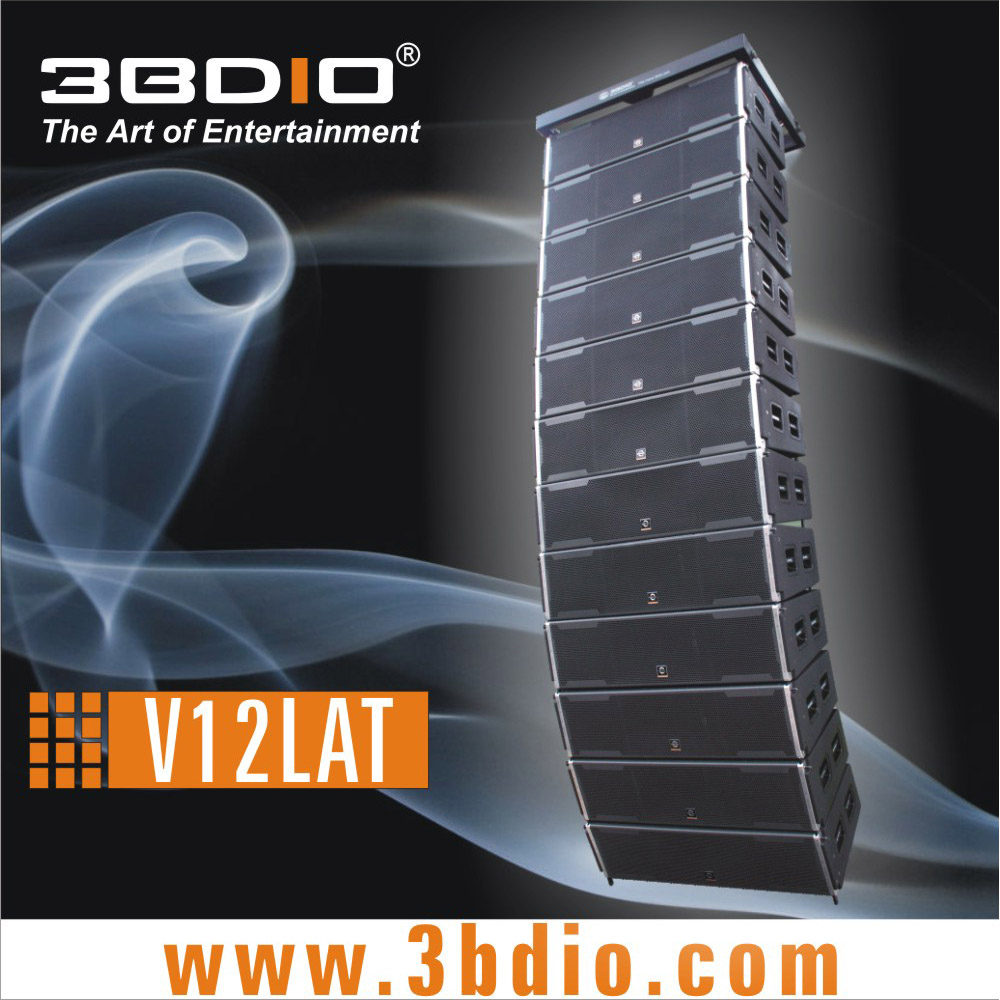

Sell line array speaker 12LAT

V12LAT active line array give us everything we need in terms of performance, versatile applications and flexiable installation.


- Setting up simply, safely and quickly

- Top quality birch plywood enclosure

- Proven technology and art of design with practical

- Class "H" amplifier with short circuit protection, dynamic clip, overload and thermal protection



Three-way full range
LF unit: 2 x 12" (100mm)
MF unit: 2 x 8" (50mm)
HF unit: 1 x 3" (75mm)
Frequency response: 1pc: 40Hz-16kHz
Sensitivity: LF:103dB MF:106dB, HF:110dB
Maximum SPL: LF:130dB MF:133dB, HF:137dB
Nominal impedance: 4ohm
Power(Rms/Peak): LF: 800W/3200W, MF: 500W/2000W, HF: 200W/800W
Input sensitivity: 0.775V
Dispersion angle: horizontal:100 Degrees (100m), vertical: 16 Degrees (150m)
Suspension angle: 0 -- 8 Degrees


Other suspension accessories:
Steel frame (1pc/group)
Block (1pc/gruop)
Canvas Belt (2pcs/group)
Power distributor splitter (120A)

Enclosure material: Birch plywood
Color/Finish: environmentally friendly black lacquer covering
Suspension style: proprietary 3BDIO rigging system
Connector:

XLR input*1

XLR Through*1

AC input*1

AC link*1

Front panel protection: harden spray covering hexangular steel grille

Product dimensions: Width: 1,371mm
Height: front: 371; rear: 279
Depth: 650
Packing:Flight case (1pc/case)
N.W./G.W.: 106kg/144kg
Shipping dimensions: 1,470 x 725 x 595
