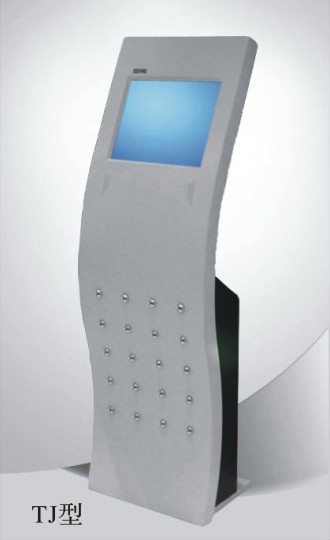

Touch Screen Kiosk

Standard Kiosks for inquiry. Elegant appearance with simple design. Field-tested ergonomic. Easy to use. Designed for 24/7 operation, tightly integrated hardware and software, highly responsive user interaction. Advanced CNC process with 1.5mm thickness cold rolled steel.


Display Type: TFT LCD
Screen size: 17.0" / 19.0" (4:3)/ 22.0"(16:10)
Resolution: 1024 * 768 /1280 * 1024/1680 * 1050
Brightness: 300 nits
Contrast ratio: 400:1

PC specification:
CPU: Intel Atom D525 1.8G dual core
Memory: KST 2G DDRIII 1333
HDD: KINGFAST 32G SSD SATAII
Power supply: DC 12V LINE IN
Graphics card type: integrated card (supports HD)
Sound card: built-in stereo speaker
Network Interface Card: Integrated LAN 10/100MB

Input interface: RJ- 45 x 1, PS/2 x 2, COM1,LPT1,Audio Interface x 3

Touch screen specifications:
Accuracy: full screen area coverage, with typical within 1.5mm
Density: 400ppi (>4,096 x 4,096 pixels)
Input method: finger, gloved hand, stylus or other any opaque object
Diameter: 8mm
Response time: 32 ms
Input interface: USB/RS232
Physical specifications:
Temperature range: 5 to 45 C
Humidity: 20 ~ 80%
Color: Diamond Silver, back is Matt matte black. Customized designs are accepted
