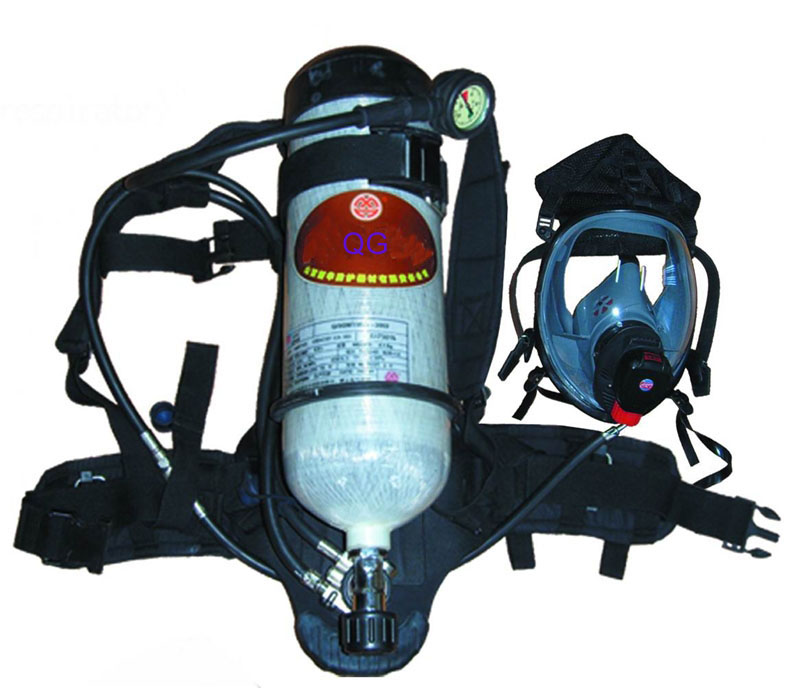

Respirator For Firefighting, Mine Rescue And Etc

Positive Pressure Air Respirator QG-RHZK001

1. Feature:

The spherical silica materials mask with the most advanced international technol logy the face piece has a wide and bright field of vision,good air tightness and can join and separate with the supply valve quickly.the supply valve has a big ventilation flow capacity, breathe easily,safe and reliable residual air alarming equipment, which is audible evening noisy place.
High strength but low weight carbon fibre composite bottle, Well-designed and comfortable carbon firbre backboard, with adjustable and uick-fastened waist and shoulder belt.

2. Technical parameter:

Model QG-RHZK001
Service time 60min
Volume of air bottle 6.8L
Max oxygen storage 200L
Oxygen supply ration 1.4~1.61L/min
Automatic oxygen supply ration >30L/min
Manual oxygen supply ration >80L/min
Maximum gas flow of gas decompression >1000L/min
Gas flow for maximum valve >500L/min
Rated working pressure 30MP
Manual oxygen supply pressure 50~200Pa
Safety valve opening pressure 0.9-1.2MPa
Alarm pressure 5±0.5MPa, 5±0.5MPa
Respiratory resistance 100pa-600pa
Cylinders with carbon fiber wrapped composite gas cylinders
Dimensions (without mask mm) 620×250×320
Gross weight 11.5kg

3.Application

It is widely used in firefighting, chemical industry, shipbuilding industry, petroleum industry, metal lurgial industry, gasworks, petroleum storage, laboratory, mine and etc. It helps emergency squad to work safely in anoxic, smoky or poisonous environments.
