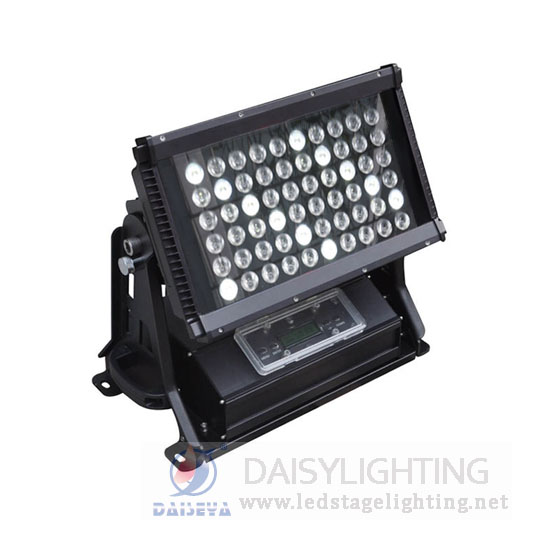

City Color 560

Light source:
High power 5w led,60pcs(R:12,G:12,B:12,A:12，W:12)
Averge life: over 50000 hours

Features:

Super bright high power leds, reflow soldering.
RGBAW color mixing, Single-headed design, can be rotated 270 °，can make many colors and light different angle.
PWM output,flicker free, no strobe for TV video or photo.
SDC<0.01.
LVS DMX model setting inside.
Well tried by DMXter4RDMtm, run stable and unanimous in all kinds of DMX signal.
Dimmer:
Uses the 32-bit the light technique, the microcontroller is based on the ARM® Cortex™-M3 controller, PWM module library use integrated PWM modulator generates PWM signals with maxinum 2400HZ frequency and 16666 stage resolution to facilitate LED dimming，To achieve flexible dimming needs.

Effect:
Color changing,strobe,Dim 0-100%,speed adjustment,etc.
Built in programs,fade.

Control:
Dmx512/Auto run/Master Slave/Sound activated
Dmx channels: 9 chs.
LED DISPLAY

Construction:
Material: Aluminum body, natural cooling.
Body color: black
Protection rate: IP65

Accessories:
DMX Signal input adapter cable (3-pin or 5-pin) 1PC
DMX Signal output adapter cable (3-pin or 5-pin) 1PC
Power Cable 1pc

Electronic:
Power consumption: 250w
Volt: 100-240V 50-60 Hz

Certification: CE, RoHS

Size:
L×W×H: 500*270*482
N.W: 23KG
