Spl Mixdream Model 2384 Analog Sum. Unit W/ 16 Inserts
Spl Mixdream Model 2384 Analog Sum. Unit W/ 16 InsertsItem Code / Model Number:
Spl Mixdream Model 2384 Analog Sum. Unit W/ 16 Inserts

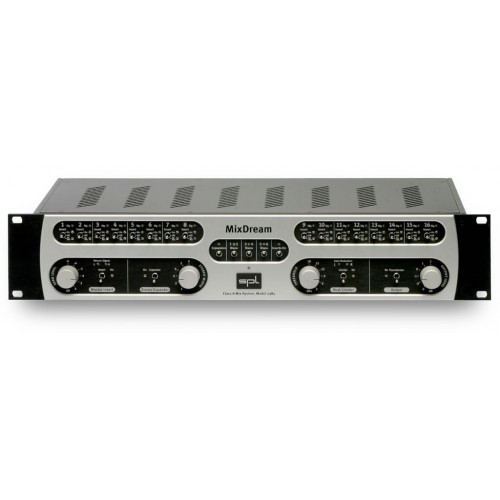

SPL MixDream Model 2384 Analog Summing Unit with 16 Inserts
The MixDream is a cascadable, 16-in-2 analog outboard mixer in a 19"/2U format. Any DAW or digital console can be expanded with active analog stereo summing and insert functionality.
MixDream Advantages - An Overview
High-grade analog summing on just 2U rack space - no analog mixing console necessary
Sophisticated, active Class A/6oV stages for analog summing in the quality of the best consoles
16 balanced inserts allow for integrated analog effects with individual and overall hard bypass relays
Reduction of A/D conversions (14 A/D conversions can be spared with all inserts connected). All analog tracks can be summed before A/D conversion.
Channel adjustments and automation (level, panorama etc.) remain controlled from the DAW so the user loses no digital efficiency
Lower DAW processor utilization rates
The most efficient possible re-sampling of individual tracks with latency free monitoring
Surround capable (from up to 3 MixDream units)
Channel capacity expandable through linked units
Sensitive and transparent stereo expansion control
Analog peak limiter for impressive loudness
Master inserts and switchable output transformers from Lundahl
Optimized signal pathes, all switching functions via relays
Proprietary differential amplifiers for each input
Discrete, exceptionally low-noise power supply
Specifications:
Freq. Response: <1Hz-220kHz (+/- 3dB)
THD+N Ratio: -104dB
(20Hz-22kHz, Input +10dBu, all channels active)_
Noise Level: -97dBu
(20Hz-22kHz, A-weigted, all channels active)
Max Input Level: +28dBu (@1kHz)
Max Output Level: +28dBu
(@1kHz/THD+N -95dBu)
Dynamic Range: 125dB
(20Hz-22kHz, A-weigted, all channels active)
Crosstalk L/R: 97dB@1kHz
CMRR: <70dB
(@1kHz, +10dBu input level)
Input Impedance: 10kOhm
(for Input 1-16, Expansion, Insert Return)_
Output Impedance: 82Ohm
(for Master/Monitor Out w/o transformer, insert send)_
Output Impedance: 65Ohm
(for Master/Monitor Out with transformer)_
Power consumption: 75W
The MixDream is a cascadable, 16-in-2 analog outboard mixer in a 19"/2U format. Any DAW or digital console can be expanded with active analog stereo summing and insert functionality.
MixDream Advantages - An Overview
High-grade analog summing on just 2U rack space - no analog mixing console necessary
Sophisticated, active Class A/6oV stages for analog summing in the quality of the best consoles
16 balanced inserts allow for integrated analog effects with individual and overall hard bypass relays
Reduction of A/D conversions (14 A/D conversions can be spared with all inserts connected). All analog tracks can be summed before A/D conversion.
Channel adjustments and automation (level, panorama etc.) remain controlled from the DAW so the user loses no digital efficiency
Lower DAW processor utilization rates
The most efficient possible re-sampling of individual tracks with latency free monitoring
Surround capable (from up to 3 MixDream units)
Channel capacity expandable through linked units
Sensitive and transparent stereo expansion control
Analog peak limiter for impressive loudness
Master inserts and switchable output transformers from Lundahl
Optimized signal pathes, all switching functions via relays
Proprietary differential amplifiers for each input
Discrete, exceptionally low-noise power supply
Specifications:
Freq. Response: <1Hz-220kHz (+/- 3dB)
THD+N Ratio: -104dB
(20Hz-22kHz, Input +10dBu, all channels active)_
Noise Level: -97dBu
(20Hz-22kHz, A-weigted, all channels active)
Max Input Level: +28dBu (@1kHz)
Max Output Level: +28dBu
(@1kHz/THD+N -95dBu)
Dynamic Range: 125dB
(20Hz-22kHz, A-weigted, all channels active)
Crosstalk L/R: 97dB@1kHz
CMRR: <70dB
(@1kHz, +10dBu input level)
Input Impedance: 10kOhm
(for Input 1-16, Expansion, Insert Return)_
Output Impedance: 82Ohm
(for Master/Monitor Out w/o transformer, insert send)_
Output Impedance: 65Ohm
(for Master/Monitor Out with transformer)_
Power consumption: 75W
- Unit Price:
- USD 2000
- Price Terms:
- FOB 2000
- Payment Terms:
- T/T
