speedlite transmitter

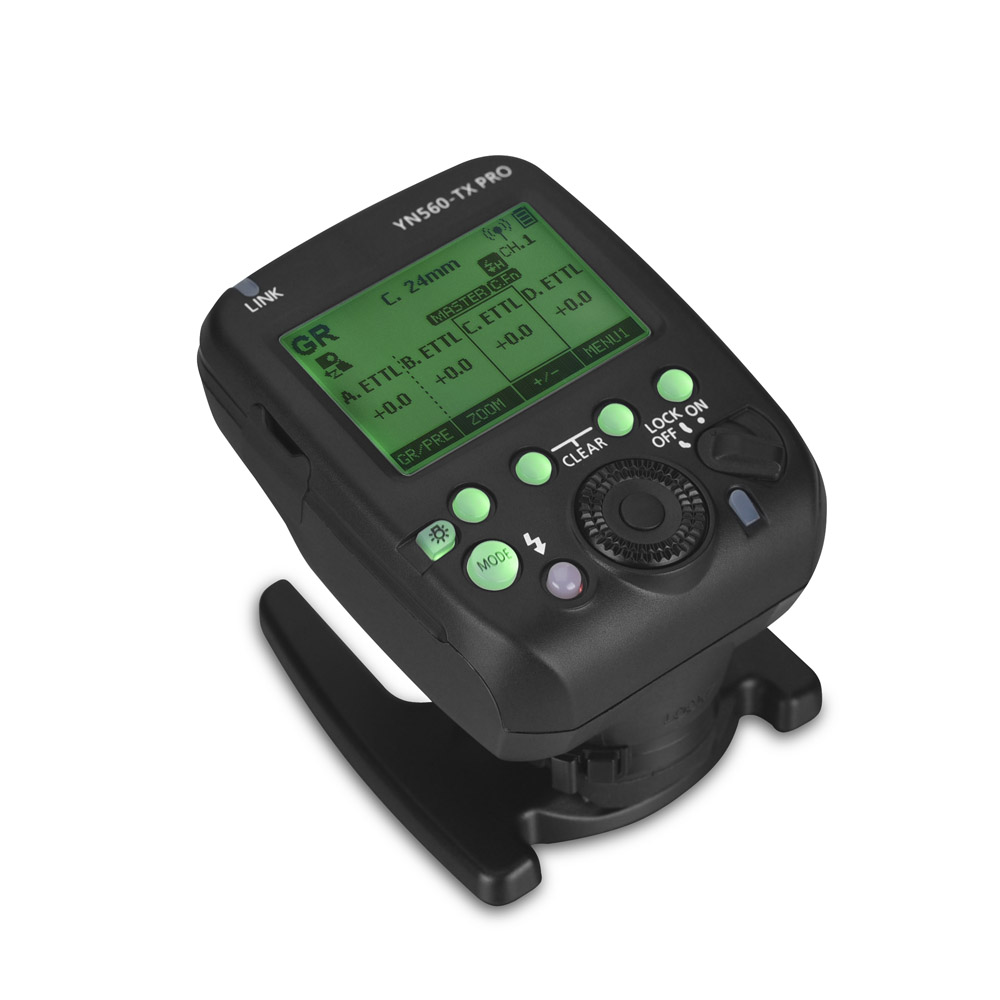

YONGNUO YN560-TX PRO speedlite transmitter is a upgrade version based on YN560TX II, with TTL/ high speed sync functions, its radio protocol achieves cross-brand compatibility.

YN560-TX PRO can control, trigger YN200/YN862 series and the models which have been upgraded to the latest firmware such as YN622C(N) II/YN685/YN968C/
YN968N(II) (in 560RX mode) to realize ETTL/M/Multi flash, high speed sync, focal length control functions.

Compatible with radio flash and flash trigger models such as YONGNUO YN560III/IV/YN660/YN720/YN860Li/RF603 series /RF605 series directly, realize M/Multi flash functions.

16 channels, up to 10,000 customizable photographer ID, A/B/C/D/E 5 flash groups

Fully supports ETTL/M/Multi/GR flash mode.

Supports front-curtain sync, second curtain sync(M mode),high speed sync

Supports ETTL ratio, flash exposure compensation, flash exposure Lock, flash exposure bracketing, modeling flash functions.

2.4G radio Maximum communication distance is over 100m.

Supports remote control focal settings of slave unit flash (only for YONGNUO compatible flashes)

Firmware can be upgraded via USB(Micro-USB)

High resolution dot-matrix LCD, backlight for keys

Fast lock mechanism

Built-in AF assist beam emitter

Specifications：
Type: 2.4G On-camera Speedlite transmitter
Exposure control system: E-TTL II/E-TTL Autoflash, Manual flash, Multi flash, Gr flash
Channel: Ch1 - 16
ID:0000-9999
Slave unit control: Up to 5 groups (A/B/C/D/E)
Transmission distance: Approx. 100 m
Flash ratio control:1:8 - 1:1 - 8:1, 1/2-stop increments
Flash exposure
FEC: ±3 stops in 1/3-increments
High-speed sync: Provided
Manual flash:1/1 - 1/128 power (1/3-stop increments)
Stroboscopic flash: Provided (1 - 500 Hz)
AF assist Beam Emitter: Provided
Firmware update: Provided
Power source:2 AA/LR6 alkaline batteries Ni-MH batteries
Dimensions: Approx. 67.7x 66.7x 81.3mm
Weight: Approx. 110 g (transmitter only, excluding batteries)
