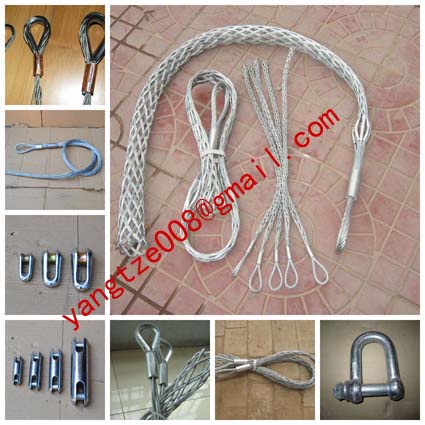

Best Quality Cable Socks

Best quality cable socks
1. Pulling grip Designed to hold the weight for electrical cable as it hangs in vertical, Cable grips sloping or horizontal positions.
2. Cable socks Easily installed and removed using no special skills or tools.
3. Cable grips Permits cable to expand and contract without loss of holding action.
4. Cable stockings Instantly relocated or repositioned which saves time and labor.
5. Pulling grip Conforms to shape of cable or object being supported.
6. Cable socks Used on any application such as supporting cable, metal rods, hose, and tubing. Pulling gripSpecific applications include buildings, poles, excavations, mine shafts, towers, elevators, potheads, terminators, or other structures.
When selecting the correct support grip, Pulling grip refer to the list below to determine the grip style best suited for your application.
7. Cable grips Determine your cable outside diameter.
8. Cable stockings Find the grip size that encompasses your cable diameter
9.Whenever possible, use a closed mesh that assembles over the cable end. If the cable end is not available, use a split mesh.
10.Select an eye style that suits your needs.
Single-head, double strand cable socks
No. Applicable diameter Rated load Length
Scs-01 10-20mm 1860 kg 600 mm
Scs-02 20-30mm 2256 kg 600 mm
Scs-03 30-40mm 3696 kg 600 mm
Scs-04 40-50mm 5490 kg 600 mm
Scs-05 50-65mm 5490 kg 600 mm
Scs-06 65-80mm 7320 kg 600 mm
Scs-07 80-95mm 7320 kg 600 mm
Scs-08 95-110mm 10613 kg 900 mm
Scs-09 12-16mm 800 kg 1300 mm
Scs-010 16-20mm 1000 kg 1300 mm
Scs-011 20-25mm 1200 kg 1300 mm
Scs-012 25-37mm 2400 kg 1400 mm
Scs-013 37-50mm 1600 kg 1400 mm
Scs-014 50-60mm 1800 kg 2000 mm
Scs-015 60-80mm 2000 kg 2000 mm
Scs-016 80-100mm 2500 kg 2000 mm
Scs-017 100-120mm 3000 kg 2000 mm
Single eye cable sock,Pulling grip,Cable socks,Pulling grip,Support grip. CABLE GRIPS,Wire Mesh Grips,Cord Grips,cable pulling socks,Wire Cable Grips.
