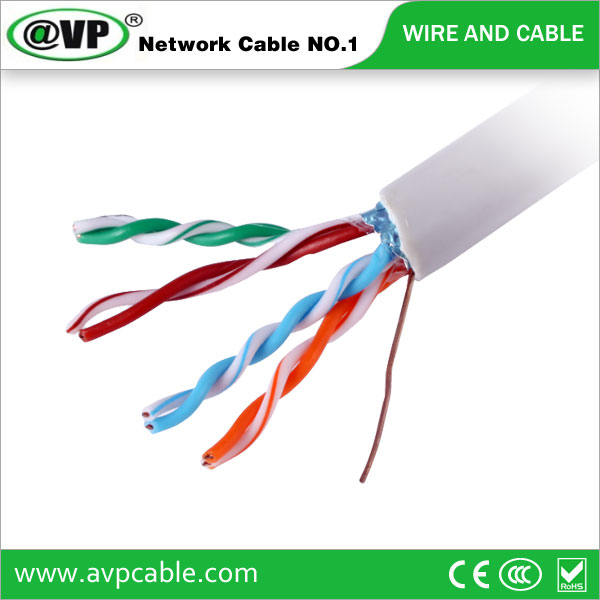

CAT5e FTP Lan Cable
CAT5e FTP Lan Cable, avp-0012Item Code / Model Number:
avp-0012
CAT5e FTP Lan Cable
Type Cat 5e
Number of Conductors 8
color blue
Jacket PVC
Number of Conductors 8
Application Internet.Communication Cables
Insulation Material PE
Conductor Material CCAG/BC
Diameter : 24AWG / 0.5mm±0.01mm
Insulation : HDPE
Thickness : 0.18mm ±0.1
OD : 0.92mm ±0.1
Twisting : 1.blue * white / blue • 2.orange * white / orange • 3.green * white / green • 4.brown * white / brown
Jacket : RoHS PVC
Thickness : 0.5
OD : 5.0±0.2mm
Marking : @VP UTP 4PR 24AWG CAT5e CMR TO TIA/EIA 568B 001M---305M
Temperature : 70°C
VOLTAGE RATING : 30V
Test Basis : ANSI/EIA/TIA568 / FLUKE-4300 / DTX-1800
Number of Conductors 8
color blue
Jacket PVC
Number of Conductors 8
Application Internet.Communication Cables
Insulation Material PE
Conductor Material CCAG/BC
Diameter : 24AWG / 0.5mm±0.01mm
Insulation : HDPE
Thickness : 0.18mm ±0.1
OD : 0.92mm ±0.1
Twisting : 1.blue * white / blue • 2.orange * white / orange • 3.green * white / green • 4.brown * white / brown
Jacket : RoHS PVC
Thickness : 0.5
OD : 5.0±0.2mm
Marking : @VP UTP 4PR 24AWG CAT5e CMR TO TIA/EIA 568B 001M---305M
Temperature : 70°C
VOLTAGE RATING : 30V
Test Basis : ANSI/EIA/TIA568 / FLUKE-4300 / DTX-1800
- Place of Origin:
- Guangdong, China (Mainland)
- Brand:
- AVP
- Packing:
- 305meters/box , 2boxes in one carton
- Payment Terms:
- L/C;T/T
- Delivery Time:
- 10 days
- Min Order Quantity:
- 500BOXES
- Standard / Certificates:
- CCC ,CE,ROSH
- Keywords:
- cat5e, ftp lan cable, network wire
