PDC bit
PDC bit, IADC M333Item Code / Model Number:
IADC M333
PDC bit
6”(5 7/8) FM1665AGU IADC: M333
Product features:

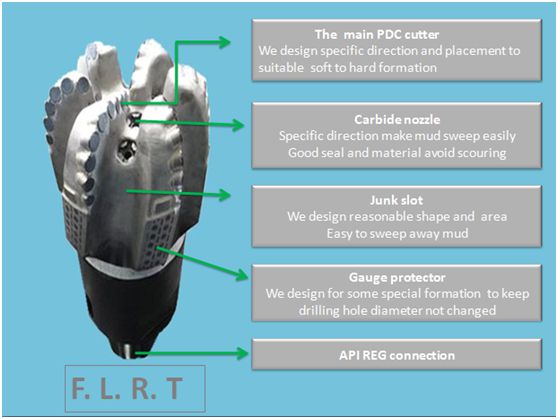

Matrix PDC with six blades of parabola crown profile and with middle cutter density.
With interchangeable screw nozzles.
Asymmetrical blades arrangement and special load-balanced cutter arrangement design improve bit stability and therefore higher ROP.
Non-plane interfaced diamond/carbide cutters absorb effectively high stress and minimize cutter fracturing and wearing.
Both titled and cauterized nozzles design improves bit cleaning and prevents bit balling, thus improve ROP.
Can be used on rotary or down hole motor drilling.
Suitable for soft to medium hard formation.
High HIS is recommended.
Product features:
Matrix PDC with six blades of parabola crown profile and with middle cutter density.
With interchangeable screw nozzles.
Asymmetrical blades arrangement and special load-balanced cutter arrangement design improve bit stability and therefore higher ROP.
Non-plane interfaced diamond/carbide cutters absorb effectively high stress and minimize cutter fracturing and wearing.
Both titled and cauterized nozzles design improves bit cleaning and prevents bit balling, thus improve ROP.
Can be used on rotary or down hole motor drilling.
Suitable for soft to medium hard formation.
High HIS is recommended.
- Place of Origin:
- China
- Brand:
- F.L.R.T
- Packing:
- We prvide with plywood box or steel box for packaging.
- Payment Terms:
- L/C;T/T
- Delivery Time:
- 7-10 days
- Min Order Quantity:
- 1 pc
- Standard / Certificates:
- API ; ISO
- Keywords:
- matrix pdc bit, pdc bit, pdc bit manufacturer
