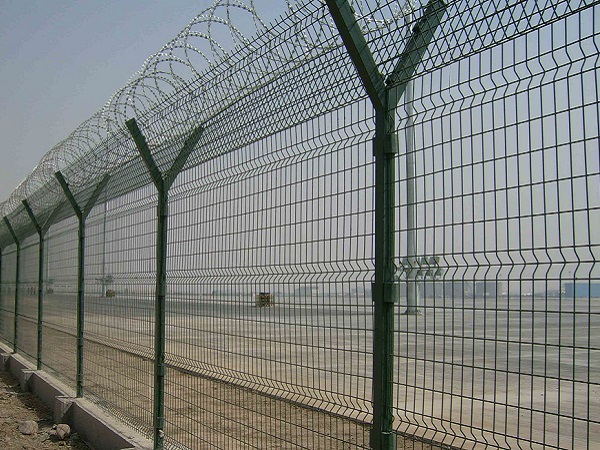

Airport fence

Airport fence system is a special design mainly for airport. It is developed out from normal welded
mesh fence. The fence mainly include :main big panel, V panel, Y post ,concertina wire and fittings.
We mainly supply two heights for this type of fence :2.7M and 3.4M. In the airport system products ,
this type of fence is the most widely used one in the world. The panel is welded with 5.0mm low
carbon steel wire .Several rigid “V” will be in the big panel and top V panel.
For the post we always use 60x60 SHS post. The finish for the fence is galvanized and polyester
powder coated.

Features:
•Not easy to do Installation
•Reasonable cost
•Nice looking
•Dark Green color --RAL6005
•Looks professional when used in Airport
•Anti jump over

Technical specifications:

Big panel(Specifications)
•Width :2.20m,2.50m,3.0m
•Height:2.03, 2.53m
•Mesh:50x100mm
•Wire thickness:4.0mm,4.5mm,5.0mm
•Rigid V:4 and 5
•Finish:Galvanized and powder coated

V Panel (Mesh Size)
•Width :2.20m,2.50m,3.0m
•Branch length:0.53, 0.73m
•Mesh:50x100mm
•Wire thickness:4.0mm,4.5mm,5.0mm
•Rigid V:2
•Finish:Galvanized and powder coated

Y Post
•60x60mm SHS steel Post

Post (Fittings-Rain hats)
•2pcs For SHS Y post

Post (Fittings-Clamps)
•Big Plastic Clamps For Post and Big Panel with bolts nuts
•Small Plastic Clamps For Post and V Panel with bolts nuts
•Clips for Big panel and V panel
•Tie wire for V panel and razor wire

Loading
•1x40HQ
