Sell GF-SEX-50×1 Lab Extruder
Sell GF-SEX-50×1 Lab ExtruderContinuous Selling Item
Sell GF-SEX-50×1 Lab Extruder
Working Principle：

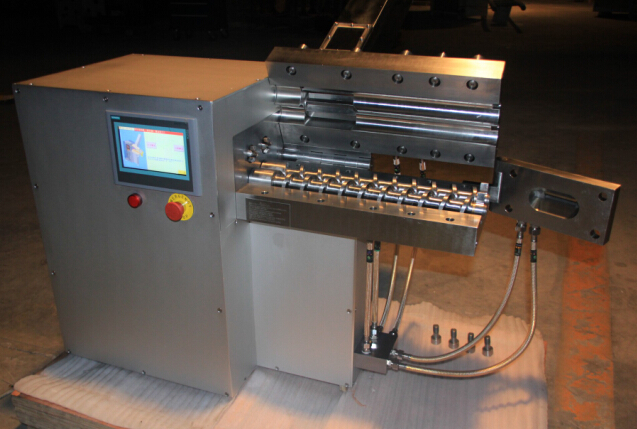

The extruder is used for single mass extrusion. Mixed mass is put into hopper. Extrusion screws push mass into combination part where size mould is fixed for certain shape and size of rope. Chamber can be opened for cleaning. Size change can be easily achieved by replacing of size mould.
Features;
Infinite adjustment of extrusion speed via frequency converter;
Water heating for extruder chamber and combination part ensuring extrusion stability;
Speed and temperature control on panel;
Technical Data:
Max. capacity 15kg/h
Rope size thickness 0~20mm
width 0~100mm
Driven motor 1.1kW
Heating power 2×6kW
Power 3P，380V， 50Hz
Working temperature 20~30℃
Working humidity ≤55%
Weight 250kg
Size 1100×650×850mm
The extruder is used for single mass extrusion. Mixed mass is put into hopper. Extrusion screws push mass into combination part where size mould is fixed for certain shape and size of rope. Chamber can be opened for cleaning. Size change can be easily achieved by replacing of size mould.
Features;
Infinite adjustment of extrusion speed via frequency converter;
Water heating for extruder chamber and combination part ensuring extrusion stability;
Speed and temperature control on panel;
Technical Data:
Max. capacity 15kg/h
Rope size thickness 0~20mm
width 0~100mm
Driven motor 1.1kW
Heating power 2×6kW
Power 3P，380V， 50Hz
Working temperature 20~30℃
Working humidity ≤55%
Weight 250kg
Size 1100×650×850mm
- Place of Origin:
- China
- Packing:
- Packed in wooden case
- Payment Terms:
- L/C;T/T
- Standard / Certificates:
- CE
