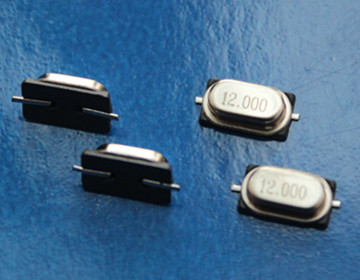

Mini 49smd Crystal Resonator 12mhz
Mini 49smd Crystal Resonator 12mhz, M49SMD001Item Code / Model Number:
M49SMD001
Mini 49smd Crystal Resonator 12mhz
1.Part No. 12.000M20P/Mini 49SMD
2.Nominal Frequency 12.000MHz
3.Frequency Tolerance at 25ºC ± 30 PPM
4.Frequency Stability (Ref. to 25ºC) ± 30 PPM (-20ºC ~ +70ºC)
5.Mode of Oscillation ■ Fund. □ 3rd □ 5th overtone
6.Operating Temperature Range -20ºC ~ +70ºC
7.Storage Temperature Range -30ºC ~ +85ºC
8.Load Capacitance (CL) 20 pF
9.Shunt Capacitance (CO) 5 pF Max.
10.Equivalent Series Resistance (ESR) 40 Ω Max.
11.Drive Level 100 μW
12.Aging (at 25ºC) ± 5 PPM / year Max.
13.Insulation Resistance 500 MΩ min. at DC 100 ± 10 V
2.Nominal Frequency 12.000MHz
3.Frequency Tolerance at 25ºC ± 30 PPM
4.Frequency Stability (Ref. to 25ºC) ± 30 PPM (-20ºC ~ +70ºC)
5.Mode of Oscillation ■ Fund. □ 3rd □ 5th overtone
6.Operating Temperature Range -20ºC ~ +70ºC
7.Storage Temperature Range -30ºC ~ +85ºC
8.Load Capacitance (CL) 20 pF
9.Shunt Capacitance (CO) 5 pF Max.
10.Equivalent Series Resistance (ESR) 40 Ω Max.
11.Drive Level 100 μW
12.Aging (at 25ºC) ± 5 PPM / year Max.
13.Insulation Resistance 500 MΩ min. at DC 100 ± 10 V
- Place of Origin:
- China
- Brand:
- Hy
- Unit Price:
- USD 0.08
- Price Terms:
- FOB Shenzhen
- Packing:
- 3000PCS/REEL
- Payment Terms:
- L/C;T/T
- Payment Remarks:
- T/T BEFORE DELIVERY
- Delivery Time:
- 7 days
- Min Order Quantity:
- 3000pcs
- Standard / Certificates:
- SGS
- Keywords:
- mini 49smd crystal resonator, resonator 12mhz, smd crystal resonator
