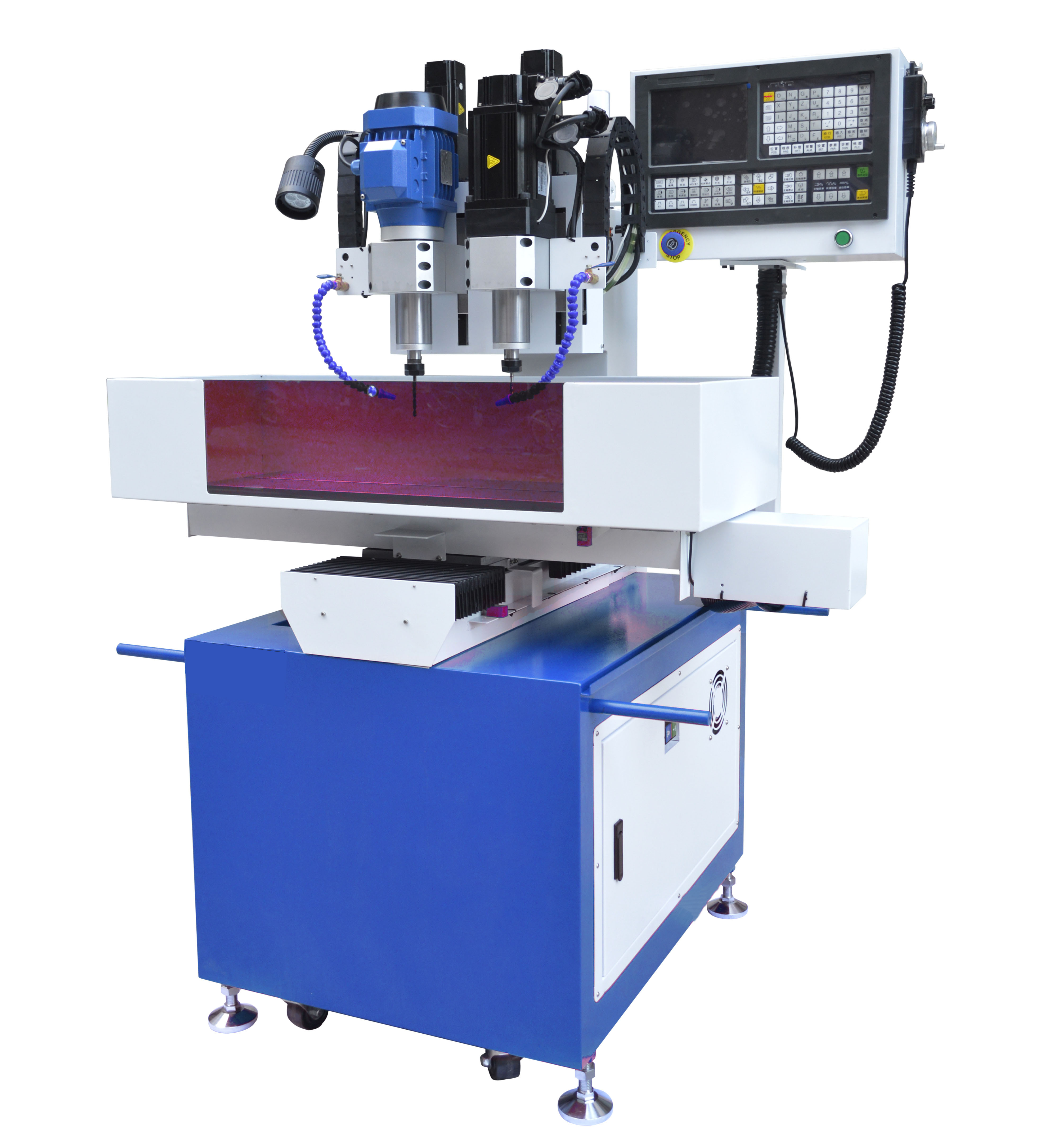

DBM-430DT Auto CNC drilling tapping machine

Programming-free CNC system, easier to operate.
Full servo motor drive control, high stability with good positioning accuracy.
Save space and save labor. Only one person can operate multiple devices at the same time.
Optional automatic alarm stop function for broken drill bit.
The signal port can be reserved for use with the pipeline at will.

Model NO. DBM-430DT
Route X-axis 400mm
Y-axis 300mm
Z-axis 120mm
Main spindle Speed 3000～60000rpm(According to requirements
Tool handle type ER20
Power 0.55kw～3.0kw(According requirements)
Moving speed X-axis 30m/min-60m/min
Y-axis 25m/min
Z-axis 25m/min
Processing capacity Drilling 1～14mm
Tapping M2-M14
Chamfering 1～14mm
Tool magazine Manual change
Repeatability ±0.01mm
programmatically CAD file import/computer programming/teaching programming / manual programming
system program memory About 10000 pcs
System external signal control Support
Working voltage AC 220V/50HZ
Dimension 1000mm*1000mm*1700mm
Weight About 650kg
