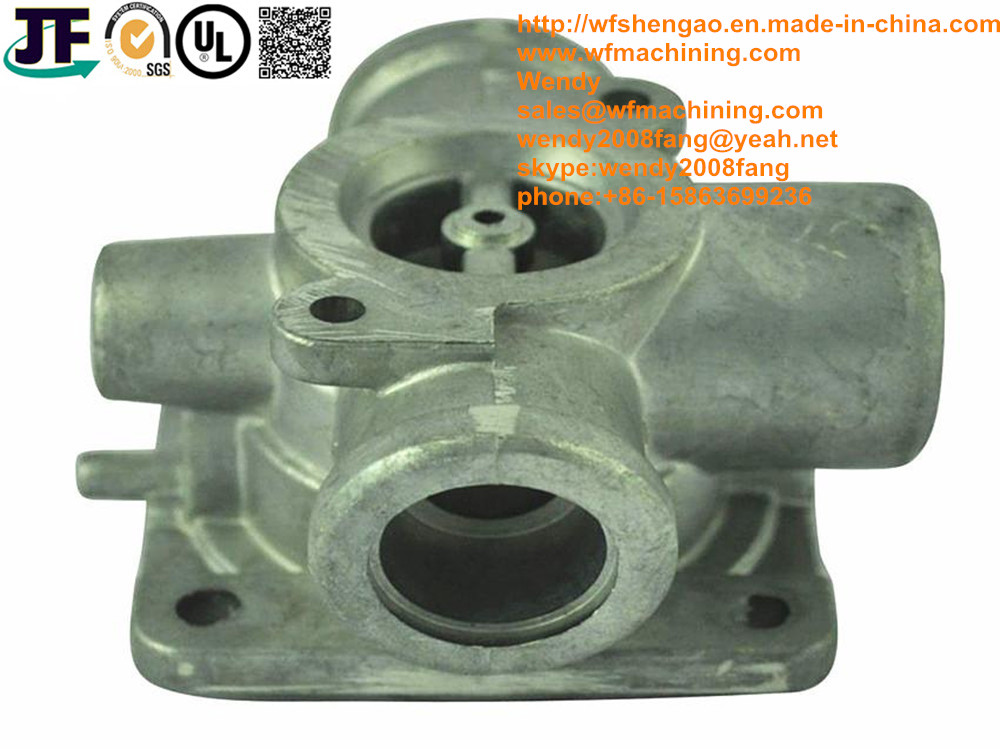

OEM Sand Casting Valve Body with machining and painting

Product Description



OEM Sand Casting Valve Body with machining and painting

1.strict QC & timely delivery
2.Standard:BS,DIN,ASTM
3.good at custom
4.OEM


1.Material: GGG40.
2.Size:CN150X150mm.
3.Weight:3.4kg.
4.Technological process: Sand casting+CNC Machining.
5.Inspection: mechanical properties, leaking free test conducted by in-house or third party
6.Use: Submersible pump body

production capacity :
1.Casting classification:Sand casting;Precision casting;Vacuum process casting etc.
2.gray iron, ductile iron, stainless steel ,carbon steel,alloy steel, etc.
3. Adoption standard: BS,DIN,ASTM GB etc.
4. Weight range:0.5~5000kg.
5. Producing capacity : 2,000 tons per month .
6. Main application: Metallurgy;Machinery;Plastics;Rubber;Pharmaceutical;
Textiles; Mining; Paper-making; Packaging.
7. Main equipments: Furnaces;heat treatment furnaces;direct-reading spectrometer;shot -blasting equipments, etc.
8. Surface treatment: polishing,plating,shot blasting,heat treatment ,etc
9. Inspection and test: Foundry in home,third part inspection,Material report,UT, MT, RT, and PT,etc..
10. Packing and shipping : Stand export packing;20day make modul & sample;delivery time against your quantity.
11. Casting service: your logo, character, trade name, number etc can be casted on the surface clearly.

Sand casting Process


OEM Sand Casting Valve Body with Machining and Painting

Machining Process


OEM Sand Casting Valve Body with Machining and Painting
Quality Control

OEM Sand Casting Valve Body with Machining and Painting
1.Ductile Iron Castings:
molding process: Resin sand/Green Sand
Material: EN-GJS-400-15/EN-GJS-500-7/EN-GJS-600-3/EN-GJS-700-2
Molding: Hand molding/Molding machine Z145/146/148/Molding line.
Possible Heat Treatment: Annealing
Industry involved: Municipal Construction / Fluid
/Automotive
Part unit weight range: 0. 5kg-2000kgs
Max/Min wall thickness requirements: 4mm-250mm
Manufacturer Certification: ISO9001(2000)/ TS16949
2. Grey iron castings:
1) molding process: Green sand/Resin sand
2) Material: EN-GJL-150/DIN 1691 GG-15,EN-GJL-200/DIN 1691-GG20,EN-GJL-250/DIN1691-GG25
,EN-GJL-300/DIN1691-GG30
3) Molding: Hand molding/ Molding machine Z145/146/148/Molding line.
4) Industry involved: Municipal industry/Construction Fluid industry/Automotive industry
5) Part unit weight range: 0.5kg-2000kgs
6) Max/Min wall thickness requirements: 4mm
7) Manufacturer Certification: ISO9001(2000)/ TS16949
