FLUSH MOUNT VANDALPROOF KEYPAD

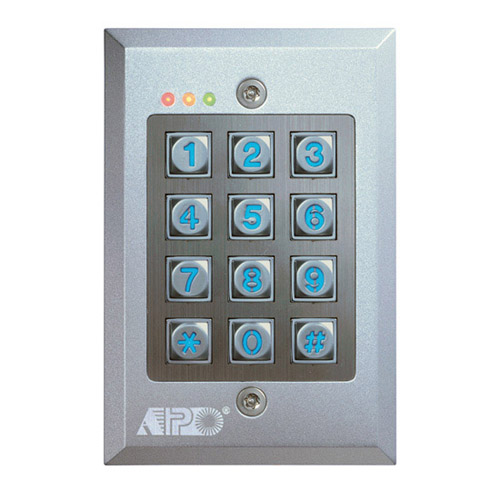

DK-2830 FLUSH MOUNT METAL BACK-LIT KEYS, VANDAL RESISTANT, WEATHERPROOF, SINGLE RELAY DIGITAL ACCESS CONTROL KEYPAD

DK-2830 is a full feature keypad system designed for Flush Mounting on any Single Electric Gang Box. It is especially suitable for retrofit installations to replace and up-grade the existing keypads. The faceplate is slightly oversized to cover old plate installation marks.It consists of 1 relay and 1 NPN open collector outputs controlled by 2 groups of independent User Codes. Output 1 is a 5 Amp rating relay providing both N.C. and N.O. dry contacts for door strike, Output 2 isan NPN open collector for other control applications, such ascontrolling of an alarm system. Three on board LED lamps are wired internally to indicate the operation status of the outputs 1 and 2 and the system status. The keypad utilizes terminal block for all the external connections.

MAIN FEATURES DK-2830

* Flush Mount on Any 70 (H) X 45 (W) mm Minimum Single Gang Boxes
* Back-lit Metal Button Keypad
* Cast Aluminum Face Plate Painted in Pearl Silver + Stainless Steel Cover Protection on Keyboard Portion
* Vandal Resistant & Weatherproof
* Gasket Sealed Back Cover Housing
* Environment Protection -- IP-66, All Weather
* Direct 12-24V AC/DC Operation
* Single Relay + One NPN Open Collector Outputs
* 100 User PIN for Output 1
* 10 User PIN for Output 2
* Built-in Tamper Switch Not Affected by The Depth of Gang Boxes
* Dimensions: Faceplate -- 120(H) X 80(W) X 15(D) mm
* Dimensions: Whole Unit -- 120(H) X 80(W) X 50(D) mm
* Dimensions: Back Box (The Portion Goes into The Gang Box) -- 66.5(H) X 43(W) X 31(D) mm
