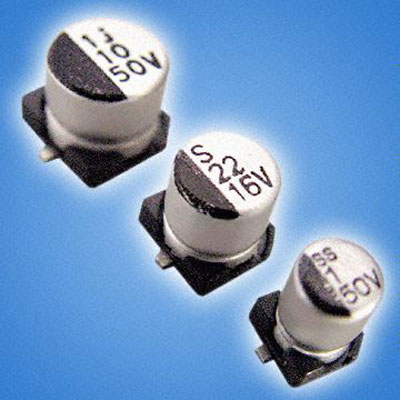

V-Chip Aluminum Electrolytic Capacitor for SMD, Height 5.4mm, Wide Temperature Range

V-Chip Aluminum Electrolytic Capacitor for SMD, Height 5.4mm, Wide Temperature Range, CK Series
Item Code / Model Number:
CK Series

V-Chip Aluminum Electrolytic Capacitor for SMD, Height 5.4mm, Wide Temperature Range V-Chip Aluminum Electrolytic Capacitor for SMD, Height 5.4mm, Wide Temperature Range
  • Chip type, operates with wide temperature range -40 to +105 degrees Celsius
  • Designed for surface mounting on high-density circuit board
  • Emboss carrier tape packing method is available for automatic insertion
  • Operation temperature range: -40 to +105 degrees Celsius
  • Voltage range: 4 to 50V
  • Capacitance range: 0.1 to 1000uF
  • Capacitance tolerance: +/- 20% at 120Hz, 20 degrees Celsius
  • Leakage current maximum: I < /= 0.01CV or 3uA whichever is greater (after two minutes)
  • Shelf life (at 105 degrees Celsius): After 1,000 hours of no load test, leakage current, capacitance and dissipation factor are same as load life value
  • Reference standard: JIS C-5141 and JIS C-5102
  • Applicable for all kinds of electronic circuits
    Main Export Markets:
  • Worldwide
    Payment Details:
  • Payment Terms: T/T, L/C
    Safety/Quality Approvals:
  • JIS
Click here to view more details
  • Delivery Time:
  • <ul><li>14 - 28 days
