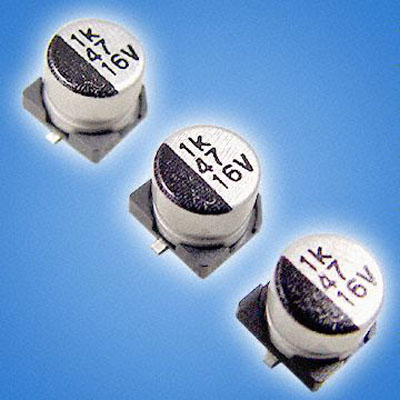

Fully-Tested V-Chip Aluminum Electrolytic Capacitor with Long Life Assurance
Fully-Tested V-Chip Aluminum Electrolytic Capacitor with Long Life Assurance, EL SeriesItem Code / Model Number:
EL Series
Fully-Tested V-Chip Aluminum Electrolytic Capacitor with Long Life Assurance
- V-chip type, with load life of 2,000 hours, temperature range up to +105 degrees Celsius
- Designed for surface mounting on high-density circuit board
- Emboss carrier tape packing method is available for automatic insertion
- Operation temperature range: -55 to +105 degrees Celsius
- Voltage range: 6.3 to 50V
- Capacitance range: 1 to 1000uF
- Capacitance tolerance: +/- 20% at 120Hz, 20 degrees Celsius
- Leakage current maximum: I < / = 0.01CV or 3uA whichever is greater (after two minutes)
- Shelf life (at 105 degrees Celsius): After 1,000 hours of no load test, leakage current, capacitance and
- Reference standard: JIS C-5141 and JIS C-5102
- Applicable to all kinds of electronic circuits
- Main Export Markets:
- Worldwide
- Payment Details:
- Payment Terms: T/T, L/C
- Safety/Quality Approvals:
- JIS
- Delivery Time:
- <ul><li>14 - 28 days
