Cable and Pipe Trace
Cable and Pipe Trace, MS-CPTK1AItem Code / Model Number:
MS-CPTK1A
Cable and Pipe Trace - Single pole transmitting signal through any matallic object, Easy; Safe and Quick to operate!
MS-CPTK1A

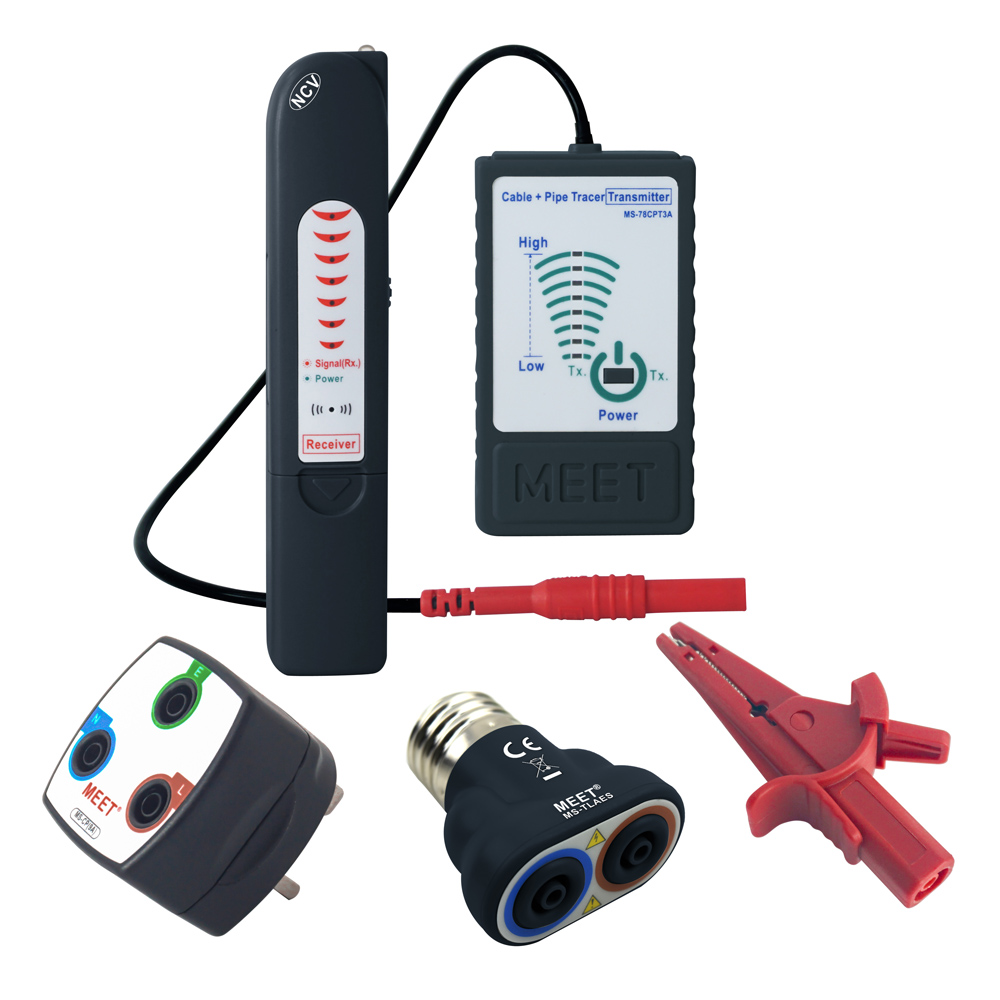

Complete Tracer Kit Set: Transmitter & Receiver with Accesories : Croc Clip, 13A Socket Adaptor, E27 ES Light Fitting Test Adaptor, all packed in Durable & Portable Carrying bag.
Advance Features:-
Transmitter - MS-78CPT3A
-Single pole transmitt the signal
-Operated with 9V battery
-8 level transmit signal selection
-Works on energized or de energized circuit up to 600V AC/DC
-Transmit signal greater than 1Km
-Transmit signal through any metallic conductor
-Croc clip can be clamped on the sheath of the wire or cable transmit signal
Receiver - MS-78CPR3
-Operated with 9V battery
-Auto sensitivity adjust or manually 'REL' adjust
-Non-contact AC voltage detection > 100V AC
-With white LED torch / flash light
-Audible with 7 level signal strength indication
-270° rotation with six angle selectable sensing arm
Croc Clip - MS-LAC
-Quick check with wire / cable / metal pipe
13A Socket Adaptor - MS-CP (9A)
-Quick check with 13A socket
E27 ES Light Fitting Test Adaptor - MS-TLAES
-Quick check with light fitting
Trace:
-Cable / Multi-core cable
-Wire / Telephone cable
-Coaxial cable
-Shielded network cable
-Armoured cable
-Buried wire / cable
-Underground water pipe
-underground cable
-Wires inside PVC / metal conduit / duct / pipe
-Metallic air / oil / water pipe
-Heating pipe
-Buried gas pipe
-Ground / Earthing connection
Note: Detectable 2 feet away depending on distance!
MS-CPTK1A
Complete Tracer Kit Set: Transmitter & Receiver with Accesories : Croc Clip, 13A Socket Adaptor, E27 ES Light Fitting Test Adaptor, all packed in Durable & Portable Carrying bag.
Advance Features:-
Transmitter - MS-78CPT3A
-Single pole transmitt the signal
-Operated with 9V battery
-8 level transmit signal selection
-Works on energized or de energized circuit up to 600V AC/DC
-Transmit signal greater than 1Km
-Transmit signal through any metallic conductor
-Croc clip can be clamped on the sheath of the wire or cable transmit signal
Receiver - MS-78CPR3
-Operated with 9V battery
-Auto sensitivity adjust or manually 'REL' adjust
-Non-contact AC voltage detection > 100V AC
-With white LED torch / flash light
-Audible with 7 level signal strength indication
-270° rotation with six angle selectable sensing arm
Croc Clip - MS-LAC
-Quick check with wire / cable / metal pipe
13A Socket Adaptor - MS-CP (9A)
-Quick check with 13A socket
E27 ES Light Fitting Test Adaptor - MS-TLAES
-Quick check with light fitting
Trace:
-Cable / Multi-core cable
-Wire / Telephone cable
-Coaxial cable
-Shielded network cable
-Armoured cable
-Buried wire / cable
-Underground water pipe
-underground cable
-Wires inside PVC / metal conduit / duct / pipe
-Metallic air / oil / water pipe
-Heating pipe
-Buried gas pipe
-Ground / Earthing connection
Note: Detectable 2 feet away depending on distance!
