3 OUTPUT DUAL RELAY DIGITAL ACCESS CONTROL KEYPAD
3 OUTPUT DUAL RELAY DIGITAL ACCESS CONTROL KEYPAD, DK-9523Item Code / Model Number:
DK-9523
DK-9523 is a full feature keypad system. It consists of 3 outputs controlled by 3 groups of independent User Codes. Output 1 is a 5 Amp rating relay providing both N.C. and N.O. dry contacts for door strike, Output 2 is a 1 Amp rating relay also providing N.C. and N.O. dry contacts for other control applications, such as controlling of an alarm system, and Output 3 is an NPN transistor Open Collector Output prepared for auxiliary control purposes. Three LED lamps are available for free connections for showing the status of the external system being controlled, and one on board LED lamp is wired internally for showing keypad operation status. Terminal block and wire harness are used for external connections. A slim-line surface mount box in Beige color is supplied with each keypad. The box in Black color is also available on request when place order.

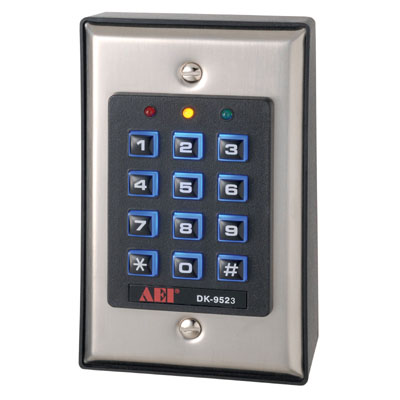

The DK-9523 is available in Back-lit keyboard or in Standard keyboard. The picture shown is a back-lit version.
FEATURES
* Direct 12-24V AC/DC Operation
* Over 100 Million Code Combinations
* 120 User Codes in 4-8 Digits
* Single Lock or Inter-lock Application
* Operates Fail-safe or Fail-secure Locking Device
* Door Lock Inhibit Authorization
* 3 Independent Outputs
* Door Forced Open and Propped-up Warnings
* Auto or Manual Code Entry
* Output Activation Announcer
* Pacifier Tone Inhibit Control
* Key Activation, Alarm, Duress and Tamper Outputs
* Door Auto Re-lock after Valid Access Prevents �Tailgate Entry
* Egress Input for Door Remote Triggering
* All Features are Keyboard Programmable
* Non-volatile Memory in Power Failure
* Flush or Surface Mount
* Surface Mount Box in Beige (Standard Version) or Black (Back-lit Version)
* Size : 116(H) X 72(W) X 43(D) mm
The DK-9523 is available in Back-lit keyboard or in Standard keyboard. The picture shown is a back-lit version.
FEATURES
* Direct 12-24V AC/DC Operation
* Over 100 Million Code Combinations
* 120 User Codes in 4-8 Digits
* Single Lock or Inter-lock Application
* Operates Fail-safe or Fail-secure Locking Device
* Door Lock Inhibit Authorization
* 3 Independent Outputs
* Door Forced Open and Propped-up Warnings
* Auto or Manual Code Entry
* Output Activation Announcer
* Pacifier Tone Inhibit Control
* Key Activation, Alarm, Duress and Tamper Outputs
* Door Auto Re-lock after Valid Access Prevents �Tailgate Entry
* Egress Input for Door Remote Triggering
* All Features are Keyboard Programmable
* Non-volatile Memory in Power Failure
* Flush or Surface Mount
* Surface Mount Box in Beige (Standard Version) or Black (Back-lit Version)
* Size : 116(H) X 72(W) X 43(D) mm
