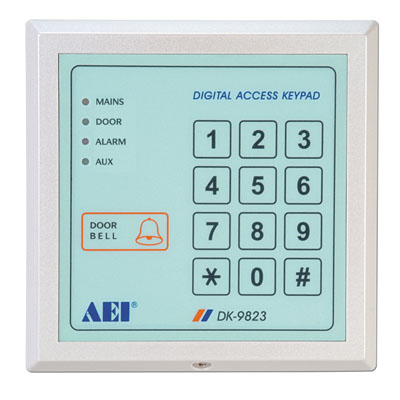

3 OUTPUT DUAL RELAY DIGITAL ACCESS CONTROL KEYPAD

DK-9823 is an universal, multi-purpose keypad system. It consists of 3 outputs controlled by 3 groups of independent User Codes. Output 1 is a 5 Amp rating relay providing both N.C. and N.O. dry contacts for door strike, Output 2 is a 1 Amp rating relay also providing N.C. and N.O. dry contacts for other control applications, such as controlling of an alarm system, and Output 3 is an NPN transistor Open Collector Output prepared for auxiliary control purposes. The keypad works perfectly in both stand-alone electric lock and inter-lock door striking systems and virtually compatible with any electric locking devices. Three LED lamps are available for free connections for showing the status of the external system being controlled, and one on board LED lamp is wired internally for showing keypad operation status. Terminal block and wire harness are used for external connections.

FEATURES

* Direct 12-24V AC/DC Operation
* Over 100 Million Code Combinations
* 120 User Codes in 4-8 Digits
* Single Lock or Inter-lock Application
* Operates Fail-safe or Fail-secure Locking Device
* Door Lock Inhibit Authorization
* 3 Independent Outputs
* Door Forced Open and Propped-up Warnings
* Auto or Manual Code Entry
* Output Activation Announcer
* Pacifier Tone Inhibit Control
* Key Activation, Alarm, Duress and Tamper Outputs
* Door Auto Re-lock after Valid Access Prevents �Tailgate Entry
* Egress Input for Door Remote Triggering
* All Features are Keyboard Programmable
* Non-volatile Memory in Power Failure
* Slim Mounting Box in 117(H) X 117(W) X 21(D) mm
