REMOTE KEY SWITCH STATIONS

These key switch stations are mainly designed for security system arm-disarm control. They are built-in with universal terminals for easy connection. They can be used freely in most of the security systems.
The key switch stations incorporate built-in tamper switch and two LED lamps with current limiting resistor for free connections.

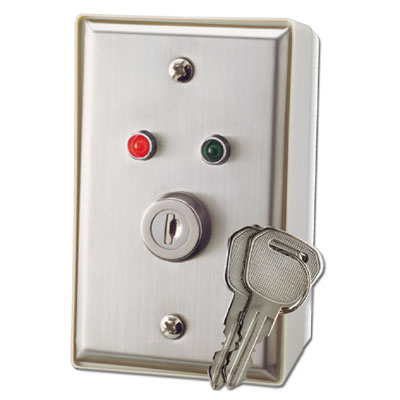

The RKS-2M is a spring returned momentary contacting type remote key station and the RKS-2L is an ON-OFF latched type remote key station.

FEATURES
� 12-24V AC/DC Operation
� 3 Amp Contact Rating
� Two Built-in LED Lamps for Status Indications
� Built-in Tamper Switch with 12V / 50mA N.C. Contact Rating
� Ideal Device for Alarm System Arm-disarm or Low Voltage ON-OFF Control
� Flush or Surface Mount (Surface Mount Box Supplied)
� Stainless Steel Plate with Standard Gang Box Mounting Holes
� Size : 118(H) X 73(W) X 43(D) mm
