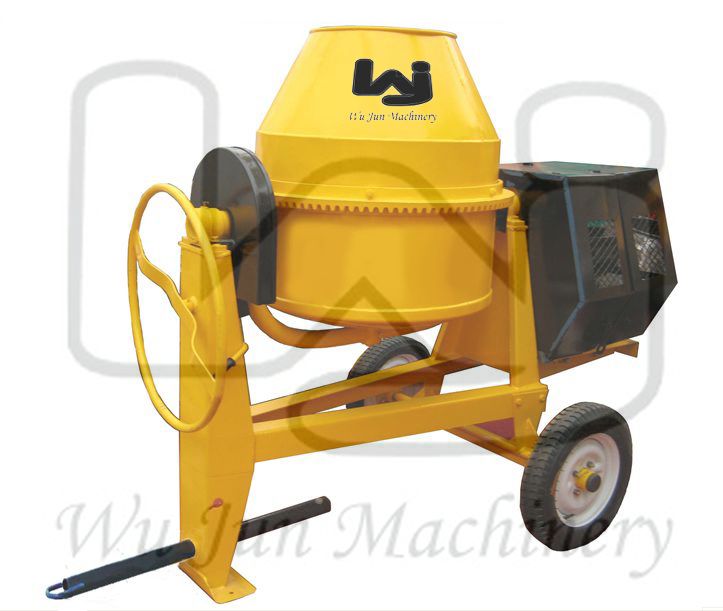

Cm-2a 260-400l Diesel Concrete Mixers

CM-2A 260-400L Concrete mixers two wheels
Model CM-2A
Place of origin Zhejiang，China（Mainland）
Brand Name Wujun
Model Number CM-2A 260 CM-2A 300 CM-2A 350 CM-2A 400
Charging Capacity 260L 300L 350L 400L
Reclaiming Capacity 230L 270L 320L 370L
Productivity 6-10m³/h 8-12 m³/h 10-14 m³/h 12-16 m³/h
Motor Power Air-cooled diesel engine 4HP or 6HP
Mixing Power 4HP 6HP
Speed of Mixing Drum 30r/min
Thickness of Drum 2.75-3.75mm
Water Supply Mode Hand control
Working Cycle Period 1min
Maximum aggregate sizes 60mm
Discharging Way Hand Control
Transmission Way Gear Wheel
Outline Dimension 2.2CBM
Overall Dimensions(l*w*h) (mm) 1900x900x1100 1960x940x1100 1960x940x1100 1960x1100x1200
Weight 333kg 353kg 379kg 389kg
Color Yellow （ or as your wish）
Packing detail Iron frame 12 sets/20’container 26 sets/40’ container
Guarantee Half of year
Supply ability 100 sets per month
Type of the tires 4.00-12(Pneumatic wheels diameter 550x150mm)
