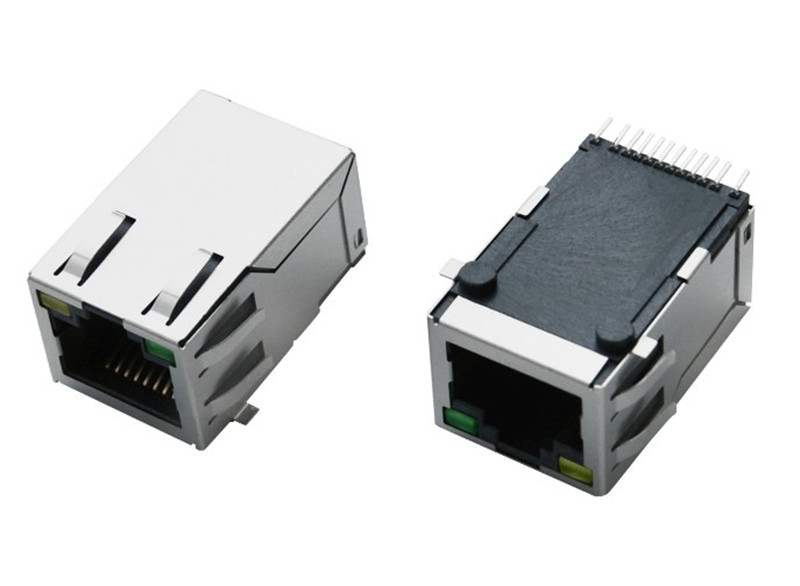

100/1000base-tx Magnetic Rj45 Modular Jacks, Tab-up, Smt Type
100/1000base-tx Magnetic Rj45 Modular Jacks, Tab-up, Smt TypeContinuous Selling Item
100/1000base-tx Magnetic Rj45 Modular Jacks, Tab-up, Smt Type
RJ45 with integrated magnetics for 100/1000Base-TX
Available with or without LED
Single port tab-up SMT type
Size: 25.4 x 16.1 x 13.61mm
10 or 12-pin signal pin versions are available
High performance for maximum EMI suppression
Material
Insulator: High Temp Nylon flammability rating UL94V-0. Available in black, yellow, blue, and red
Contacts: Phosphor Bronze with gold thickness options(6u”, 15u”, 30u”, 50u”) over 50u” minimum nickel on contact mating area
Electrical
Voltage Rating: 125 V AC(RMS)
Current Rating: 1.5 AMP
Contact Resistance: 20mΩ Max.
Insulation resistance: 500MΩ Min.
Dielectric withstanding voltage: 1000V AC RMS 60Hz, 1 Min.
Mechanical
Durability: 750 mating & unmating cycles
Mated Retention Force: 7.7kg
Operating Temperature: -40°C to +85°C
Available with or without LED
Single port tab-up SMT type
Size: 25.4 x 16.1 x 13.61mm
10 or 12-pin signal pin versions are available
High performance for maximum EMI suppression
Material
Insulator: High Temp Nylon flammability rating UL94V-0. Available in black, yellow, blue, and red
Contacts: Phosphor Bronze with gold thickness options(6u”, 15u”, 30u”, 50u”) over 50u” minimum nickel on contact mating area
Electrical
Voltage Rating: 125 V AC(RMS)
Current Rating: 1.5 AMP
Contact Resistance: 20mΩ Max.
Insulation resistance: 500MΩ Min.
Dielectric withstanding voltage: 1000V AC RMS 60Hz, 1 Min.
Mechanical
Durability: 750 mating & unmating cycles
Mated Retention Force: 7.7kg
Operating Temperature: -40°C to +85°C
- Place of Origin:
- China
- Brand:
- Heling
- Unit Price:
- USD 1.25
- Port:
- FOB Shenzhen
- Packing:
- Tape and Reel packaging
- Payment Terms:
- ;T/T
- Payment Remarks:
- T/T in advance or transfer VIA Paypal
- Delivery Time:
- 25
- Min Order Quantity:
- 5000pcs
- Standard / Certificates:
- RoHs
