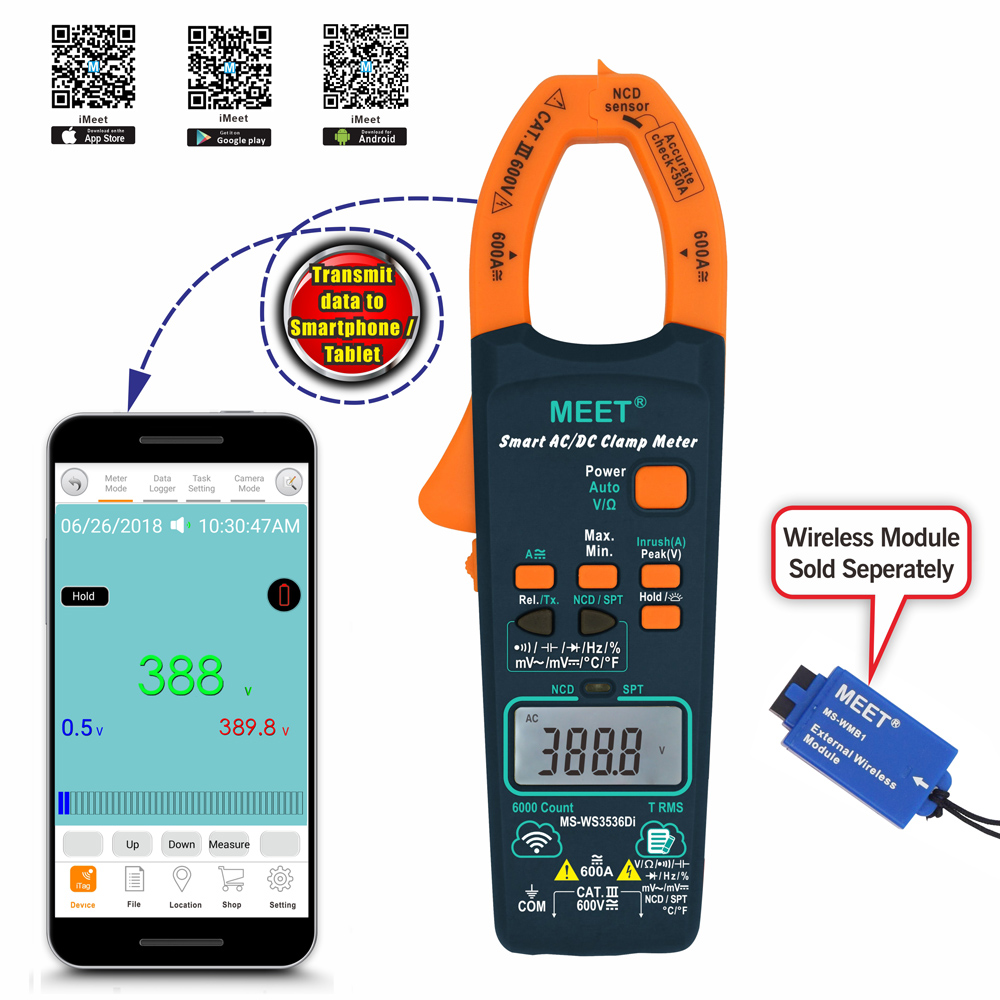

Wireless Connectivity Fully Auto Range AC / DC Clamp Meter
Wireless Connectivity Fully Auto Range AC / DC Clamp Meter, MS-WS3536DiItem Code / Model Number:
MS-WS3536Di
Wireless Connectivity Fully Auto Range AC / DC Clamp Meter
Wireless Connectivity Fully Auto Range AC / DC Clamp Meter
MS-WS3536Di
Features:-
Max Voltage between Terminal and Earth: CAT Il, 600V (AC / DC ) ; CAT Ill, 300V ( AC / DC)
True RMS
Count / Digital: 6000 / 3-3/4
AC / DC Current ( Auto detection ) 600A: Auto detection current > 0.1A (AC/DC) max. 600A
Auto detection voltage > 0.8V (AC / DC)
Auto / Manual 'mV' (AC / DC 600mV
Duty cycle 1-99.99%
Frequency 'Hz' 10Hz-10MHz
Capacitance '⫞⊦' 10nF-100mF
Diode check ‘⫞←‘ : 2.999V
'NCD' Non-contact AC VoItage Detector (Audible and numercial display) > 25V (AC) : Numercial digital AC signal strength
'SPT' Single Probe Test AC Voltage (Audible and numercial display) > 25V : Identify 'Live / Hot' and 'Neutral' / Ghost wire / Voltage difference / Ground / Earthing connection
Freeze / Hold reading
Relative reading ( Rel )
Auto Power Off (5 mins.) or always 'ON'
Anti Burn Protection (ABP) on full range
INR / Peak hoId : INR current : > 1 A / @ 60A; > 10A / @ 600A
Measureable temperature from thermocouple -90℃ ~ 1300℃ (-130℉ ~ 2372℉)
'K' type temperature Ni-cr and Ni-si sensor, temperature range measureable -40℃ ~ 250℃ (-40℉ ~ 482℉) to be provided
Maximum Conductor Diameter for Measurement (mm) : <Ø30
Maximum open jaw (mm) : Ø30
With latch lock to make the jaw to keep continuous opening or close status
Battery powered : 2 x AAA ( R03 / LR03 )
Dimensions (L x W x D) mm : 210 x 73 x 35
Weight (approx.) grams (without battery ) : 160g
MS-WS3536Di
Features:-
Max Voltage between Terminal and Earth: CAT Il, 600V (AC / DC ) ; CAT Ill, 300V ( AC / DC)
True RMS
Count / Digital: 6000 / 3-3/4
AC / DC Current ( Auto detection ) 600A: Auto detection current > 0.1A (AC/DC) max. 600A
Auto detection voltage > 0.8V (AC / DC)
Auto / Manual 'mV' (AC / DC 600mV
Duty cycle 1-99.99%
Frequency 'Hz' 10Hz-10MHz
Capacitance '⫞⊦' 10nF-100mF
Diode check ‘⫞←‘ : 2.999V
'NCD' Non-contact AC VoItage Detector (Audible and numercial display) > 25V (AC) : Numercial digital AC signal strength
'SPT' Single Probe Test AC Voltage (Audible and numercial display) > 25V : Identify 'Live / Hot' and 'Neutral' / Ghost wire / Voltage difference / Ground / Earthing connection
Freeze / Hold reading
Relative reading ( Rel )
Auto Power Off (5 mins.) or always 'ON'
Anti Burn Protection (ABP) on full range
INR / Peak hoId : INR current : > 1 A / @ 60A; > 10A / @ 600A
Measureable temperature from thermocouple -90℃ ~ 1300℃ (-130℉ ~ 2372℉)
'K' type temperature Ni-cr and Ni-si sensor, temperature range measureable -40℃ ~ 250℃ (-40℉ ~ 482℉) to be provided
Maximum Conductor Diameter for Measurement (mm) : <Ø30
Maximum open jaw (mm) : Ø30
With latch lock to make the jaw to keep continuous opening or close status
Battery powered : 2 x AAA ( R03 / LR03 )
Dimensions (L x W x D) mm : 210 x 73 x 35
Weight (approx.) grams (without battery ) : 160g
