Meet International Ltd.

Wireless Connectivity Compatible Digital Multimeter Detector

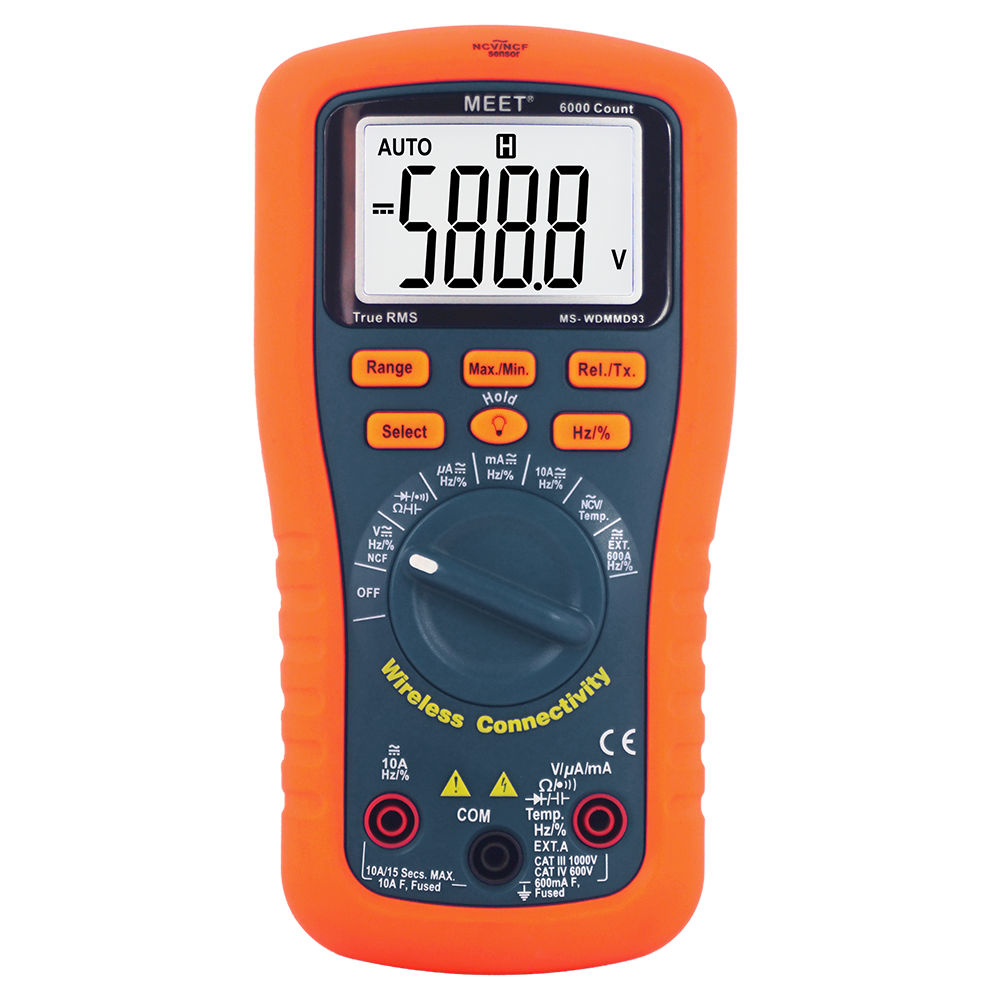

Wireless Connectivity Compatible Digital Multimeter Detector, MS-WDMMD93
Item Code / Model Number:
MS-WDMMD93

Wireless Connectivity Compatible Digital Multimeter Detector Wireless Connectivity Compatible Digital Multimeter Detector
Wireless Connectivity Compatible Digital Multimeter Detector
MS-WDMMD93

Features:-
Max. voltage between terminal and earth: CATIII, 1000V (AC/DC); CATIV, 600V (AC/DC)
True RMS
Count / Digit: 6000 / 3-3/4
Auto / Manual 'V' (AC / DC Voltage): 600V AC / 1000V DC
Auto / Manual 'Ω': 0-60MΩ
Diode check < 3.000V
Countinuity < 50Ω Beep
'uA / mA / 10A' (AC/DC current)
Capacitance '+' 10nF-100mF
Frequency / Duty cycle (%) : 10Hz-10MHz / 1-99%
External AC / DC current clamp adaptor input : 600A, 1mV=1A
Fitted with replaceable 600mA (φ6x32mm) and 10A (φ10x38mm) fast blow fuse
'NCF' Non-contact Frequency Detection
'NCV' Non-contact AC Voltage Detection (Audible and Visible) > 100V
'SPT' Single Probe Test AC Voltage (Audible and Visible) > 100V
Measureable temperature from thermocouple -50℃ ~ 1000℃ (-58℉ ~ 1832℉)
‘K’ type temperature Ni-Cr and Ni-Si sensor, temperature range measureable -40℃ ~ 250℃ (-40℉ ~ 482℉) to be provided
Max. / Min. / Max-Min. display
'OL' Over range display / Backlight
Input impededance 10MΩ
Auto Power Off (5 mins.) or always "ON"
Low battery indication (2.6V approx)
Battery powered: 1x 9V (6F22 / 6LR61 / 1604)
Diemnsion (L x W x D) mm : 188 x 96 x 58
Weight (approx.) grams (without battery) : 415g
