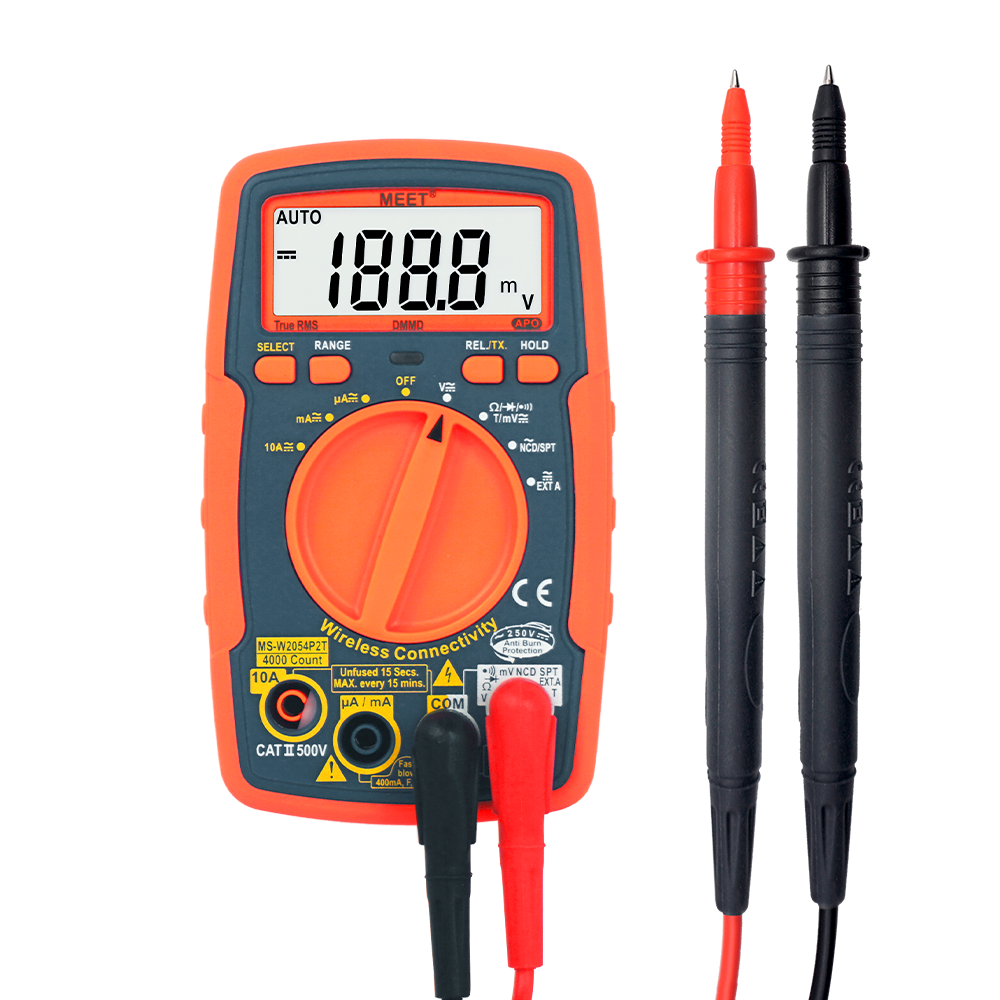

Wireless Connectivity Compatible Palm Size Digital Multimeter Detector
Wireless Connectivity Compatible Palm Size Digital Multimeter Detector, MS-W2054P2TItem Code / Model Number:
MS-W2054P2T
Wireless Connectivity Compatible Palm Size Digital Multimeter Detector
MS-W2054P2T
Max. voltage between terminal and earth: CATII, 500V (AC / DC), CATIII, 300V (AC / DC)
True RMS
Count / Digit: 4000 / 3-3/4
Auto / Manual 'V' (AC / DC Voltage): 500V AC /DC
Auto / Manual 'Ω': 0-40MΩ
Continuity < 50Ω Beep
Diode check < 2.000V
'uA / mA / 10A' (AC / DC Current)
External AC/DC current clamp adaptor input, 1mV=1A: 400A
Replaceable (φ5 x 20mm) fast blow fuse: 400mA
'NCD' Non-Contact AC Voltage Detector (Audible and numerical display) > 25V (AC): Numerical display AC signal strength
'SPT' Single Probe Test AC Voltage (Audible and numerical display) > 25V: Identify 'Live / Hot' and 'Neutral' / Ghost wire '/ voltage difference / Ground / Earthing connection
Measureable temperature from thermocouple -50℃ ~ 1000℃ (-58℉ ~ 1832℉)
‘K’ type temperature Ni-Cr and Ni-Si sensor, temperature range measureable -40℃ ~ 250℃ (-40℉ ~ 482℉) to be provided
Anti Burn Protection (ABP) on full range and up to 250V (AC / DC) (NOT FOR CURRENT FRANGE)
Freeze / Hold reading
Relative reading (Rel.)
Input impedance 10MΩ
Auto Power Off (5 mins.) or always 'ON'
Low battery indication (2.6V approx) & 'OL' Over range display
Battery powered: 2 x 1.5V AAA (R03 / LR03)
Dimensions (L x W x D) mm: 126 x 76 x 34
Weight (approx.) grams (without battery): 145g
MS-W2054P2T
Max. voltage between terminal and earth: CATII, 500V (AC / DC), CATIII, 300V (AC / DC)
True RMS
Count / Digit: 4000 / 3-3/4
Auto / Manual 'V' (AC / DC Voltage): 500V AC /DC
Auto / Manual 'Ω': 0-40MΩ
Continuity < 50Ω Beep
Diode check < 2.000V
'uA / mA / 10A' (AC / DC Current)
External AC/DC current clamp adaptor input, 1mV=1A: 400A
Replaceable (φ5 x 20mm) fast blow fuse: 400mA
'NCD' Non-Contact AC Voltage Detector (Audible and numerical display) > 25V (AC): Numerical display AC signal strength
'SPT' Single Probe Test AC Voltage (Audible and numerical display) > 25V: Identify 'Live / Hot' and 'Neutral' / Ghost wire '/ voltage difference / Ground / Earthing connection
Measureable temperature from thermocouple -50℃ ~ 1000℃ (-58℉ ~ 1832℉)
‘K’ type temperature Ni-Cr and Ni-Si sensor, temperature range measureable -40℃ ~ 250℃ (-40℉ ~ 482℉) to be provided
Anti Burn Protection (ABP) on full range and up to 250V (AC / DC) (NOT FOR CURRENT FRANGE)
Freeze / Hold reading
Relative reading (Rel.)
Input impedance 10MΩ
Auto Power Off (5 mins.) or always 'ON'
Low battery indication (2.6V approx) & 'OL' Over range display
Battery powered: 2 x 1.5V AAA (R03 / LR03)
Dimensions (L x W x D) mm: 126 x 76 x 34
Weight (approx.) grams (without battery): 145g
- Place of Origin:
- China
- Brand:
- MEET
- Payment Terms:
- T/T
- Payment Remarks:
- Paypal
- Delivery Time:
- 4-6 weeks days
- Keywords:
- digital multimeter detector, digital multimeter, multimeter detector
