SINGLE RELAY OUTPUT DIGITAL ACCESS CONTROL KEYPAD

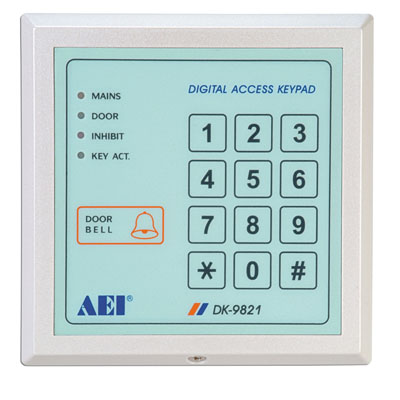

DK-9821 is a full feature keypad with single relay output mainly designed for those installations requiring electric door strike and having door open/close monitoring. The 5 Amp output relay provides both N.C. and N.O. dry contacts for door strike, which is virtually compatible with any electric locking devices. The keypad works perfectly in both stand-alone electric lock and inter-lock door striling systems. Four LED lamps are wired internally to indicate its operation and system status. The keypad utilizes terminal block for all the external connections.

FEATURES

* Direct 12-24V AC/DC Operation
* Over 100 Million Code Combinations
* 100 User Codes with 4-8 Digits
* Single Lock or Inter-lock Application
* Operates Fail-safe or Fail-secure Locking Device
* Door Lock Inhibit Authorization
* Independent Outputs with N.C. and N.O. Contact
* Door Forced Open and Propped-up Warnings
* Auto or Manual Code Entry
* Output Activation Announcer
* Pacifier Tone Inhibit Control
* Key Activation, Duress and Tamper Outputs
* Door Auto Re-lock after Valid Access Prevents �Tailgate Entry
* Egress Input for Door Remote Triggering
* All Features are Keyboard Programmable
* Non-volatile Memory in Power Failure
* Slim Mounting Box in 117(H) X 117(W) X 21(D) mm
