2 OUTPUT DUAL RELAY DIGITAL ACCESS CONTROL KEYPAD

DK-9522 is a full feature keypad system. It consists of 2 relay outputs controlled by 2 groups of independent User Codes. Output 1 is a 5 Amp rating relay providing both N.C. and N.O. dry contacts for door strike, Output 2 is a 1 Amp rating relay also providing N.C. and N.O. dry contacts for other control applications, such as controlling of an alarm system. Three on board LED lamps are wired internally to indicate the operation status of the outputs 1 and 2 and the system status of the keypad. The keypad utilizes terminal block for all the external connections. A slim-line surface mount box in Beige color is supplied with each keypad. The box in Black color is also available on request when place order.

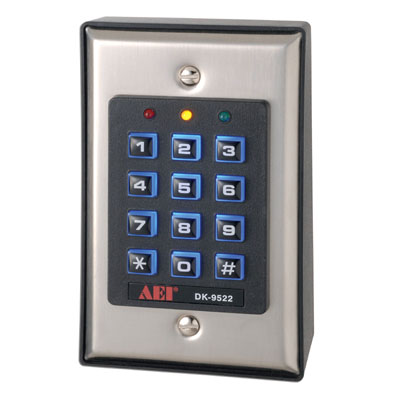

The DK-9522 is available in Back-lit keyboard or in Standard keyboard. The picture shown is a Back-lit version.

FEATURES

* Direct 12-24V AC/DC Operation
* Over 100 Million Code Combinations
* 110 User Codes with 4-8 Digits
* Single Lock or Inter-lock Application
* Operates Fail-safe or Fail-secure Locking Device
* Door Lock Inhibit Authorization
* 2 Independent Outputs
* Door Forced Open and Propped-up Warnings
* Auto or Manual Code Entry
* Output Activation Announcer
* Pacifier Tone Inhibit Control
* Key Activation, Duress and Tamper Outputs
* Door Auto Re-lock after Valid Access Prevents �Tailgate Entry
* Egress Input for Door Remote Triggering
* All Features are Keyboard Programmable
* Non-volatile Memory in Power Failure
* Flush or Surface Mount
* Surface Mount Box in Beige (Standard Version) or Black (Back-lit Version)
* Size : 116(H) X 72(W) X 43(D) mm
